1’x2’ Commercial/Industrial Grade Lowbay 2,000 to 10,000 Lumens

SKU: 100208 Category:

The BA Series 1’x2’ fixture is precision-engineered for expansive illumination with a wide 120-degree distribution angle, making it ideal for applications requiring broad coverage. Designed for medium to low ceilings, it offers versatility with various lumen packages and mounting options. Its robust thermal design ensures reliable performance in challenging conditions, suitable for installation heights from 6 to 20 feet. Handcrafted in Ontario, Canada, it’s the ideal choice for your lighting needs.

Login to view pricing and availability
No login? Please contact us to request dealer credentials.

Product Overview

Ordering Guide

Downloads

Application

This unit is a great option for industrial, commercial or agricultural buildings such as metal fabricating shops, woodworking shops, storage sheds, warehouses, drive sheds, on farm shop’s, grocery stores, tool stores, airplane hangers, hockey rinks, hobby shops and many more. Recommended Installation Height Is 6 to 20 Feet.

Features

  • Configurations exceeding 160 lm/w
  • Slim profile 1.75” thick for tight fit spaces
  • Standard 0-10V dimming for control/precision
  • Robust LED boards made in house by JW LED Inc.

Options

  • Wide range of lumen outputs
  • Variety of motion sensors or controls
  • Customizable color temperature or CRI values
  • Pre-wired whips for quick installation

Mounting

  • Surface mount (This unit can be mounted directly to any ceiling or wall)

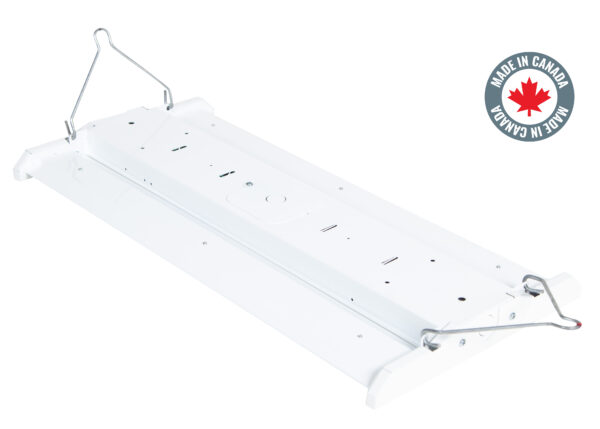

  • Suspension mount (Add the chain hangers in the ordering code)

Approvals

Approved for use in Canada and USA, QPS Certified

Warranty

Standard 5 year warranty, view our warranty policy for full details

Ordering Guide

Example:
BA12-8C50K195L-UNVD1NW-NLSM
BA12
CRI CCT Lumens
8C 80 30K 3000K 097L 9,750 Lumens
9C 90 40K 4000K 080L 8,000 Lumens
- 50K 5000K 060L 6,000 Lumens
- 65K 6500K 040L 4,000 Lumens
- - 020L 2,000 Lumens
Voltage Driver 0-10V Wiring
UNV 120-277V D1 0-10V 1% NW Not Wired for DIM
347 347V - PW Pre-Wired for DIM
- - -
- - -
- - -
Lens Mounting Options

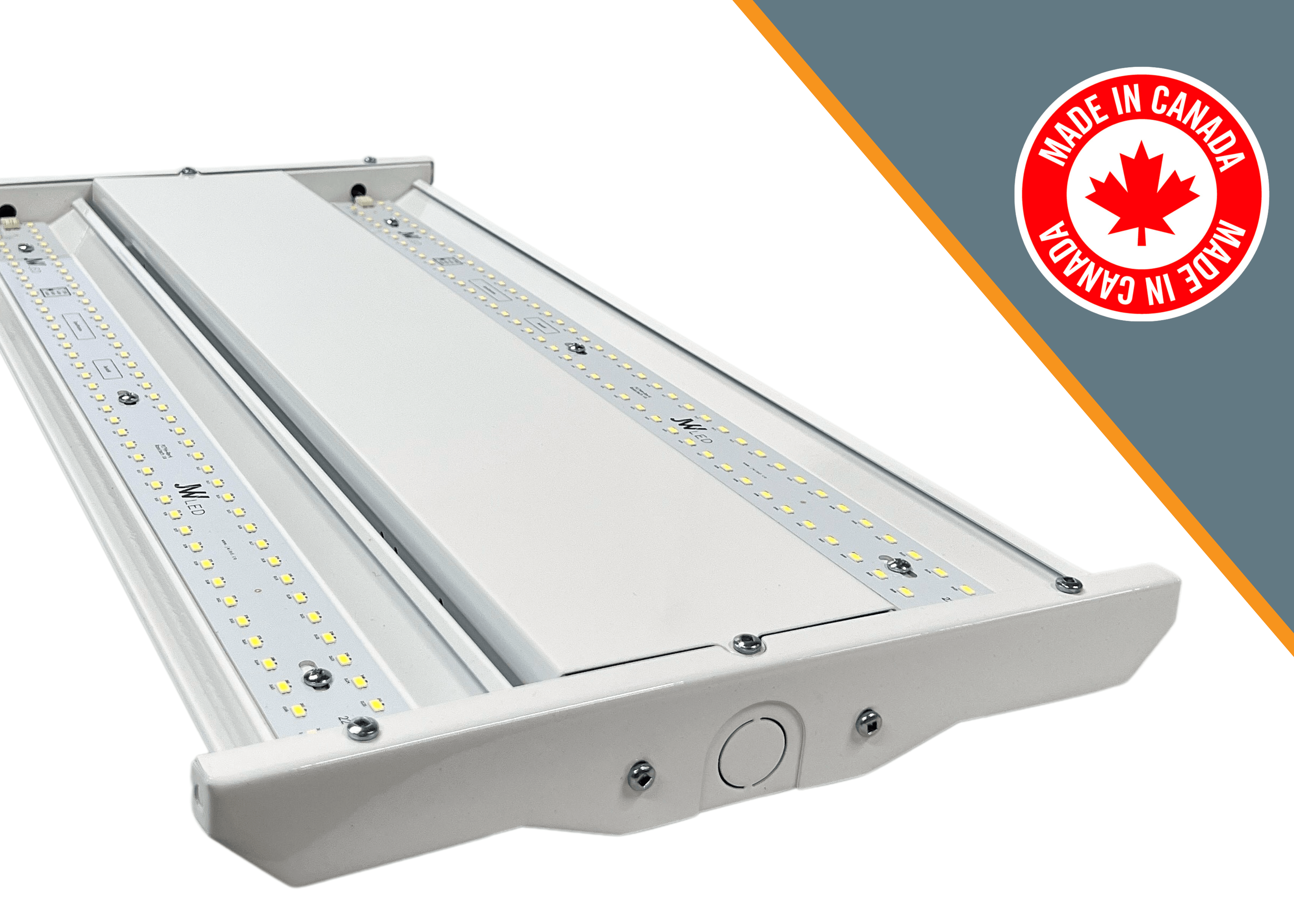

NL No Lens SM Surface Mount Blank None

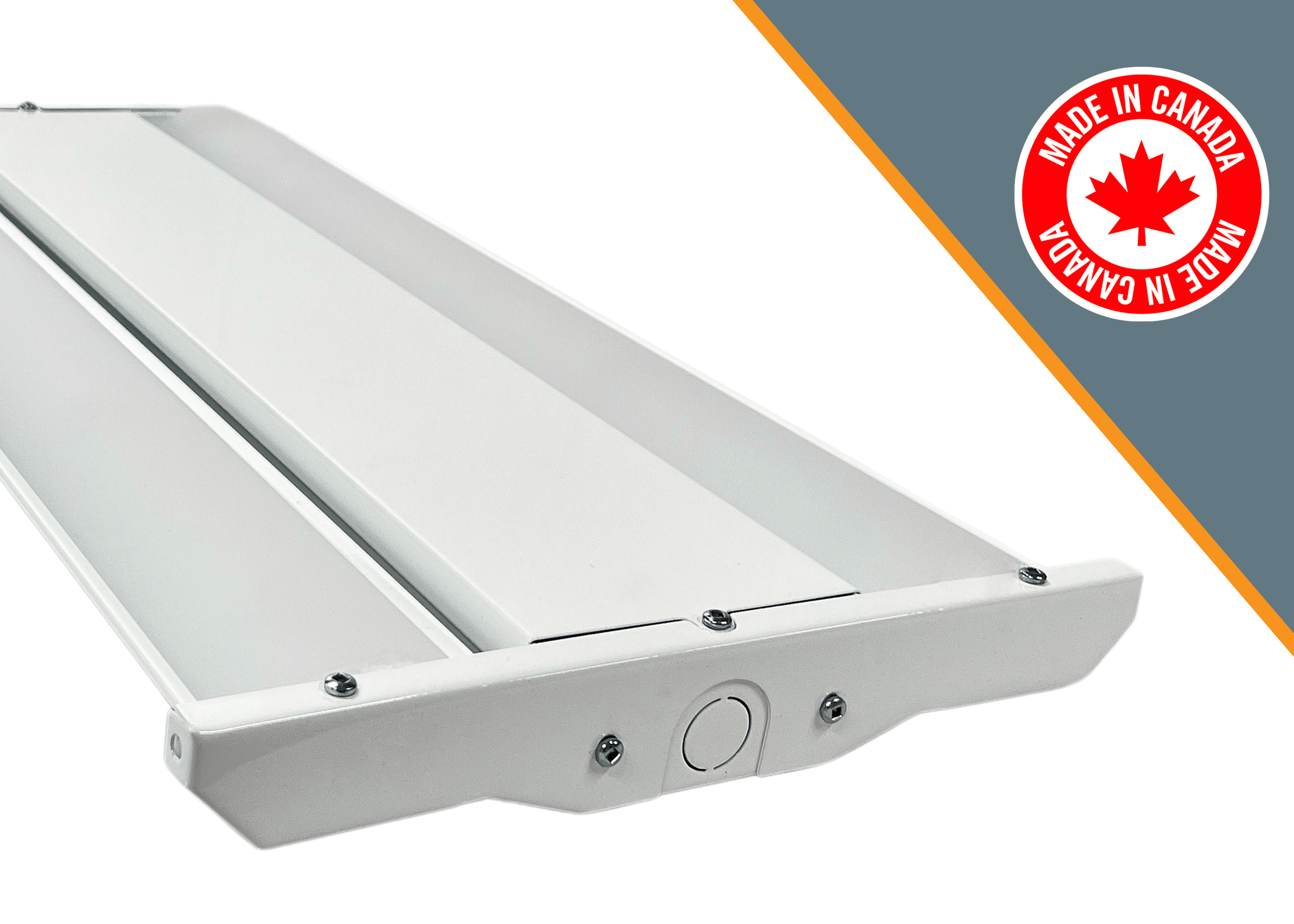

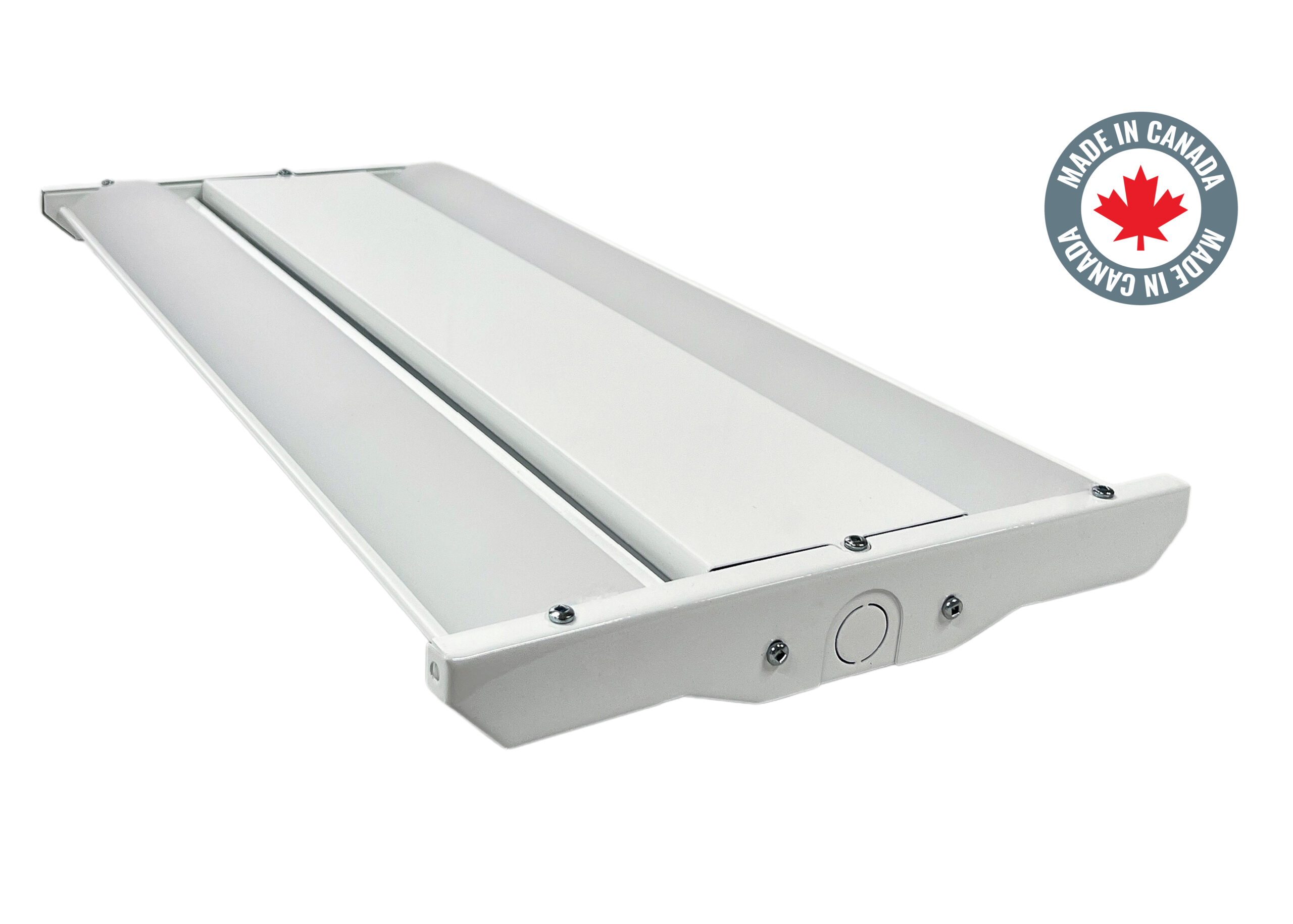

FS Frosted Smooth CH Chain Hanger Hooks RTP Retail Packaging
- - CD3 3’ Whip Pre-Wired (Black)
- - MS5 Motion Sensor for Aisleway4,5
- - MS4 Motion Sensor for 360°4,5
CRI CCT Lumens
8C 8030K 3000K097L 9,750 Lumens
9C 9040K 4000K080L 8,000 Lumens
-50K 5000K060L 6,000 Lumens
-65K 6500K040L 4,000 Lumens
--020L 2,000 Lumens
Voltage Driver 0-10V Wiring
UNV 120-277VD1 0-10V 1%NW Not Wired for DIM
347 347V-PW Pre-Wired for DIM
---
---
---
Lens Mounting Options
NL No LensSM Surface MountBlank None
FS Frosted SmoothCH Chain Hanger HooksRTP Retail Packaging
--CD3 3’ Whip Pre-Wired (Black)
--MS5 Motion Sensor for Aisleway4,5
--MS4 Motion Sensor for 360°4,5
