The LZ Series Wide Body 4’ fixture is a high output vaportight fixture, ideal for applications needing extensive coverage on high ceilings. It offers versatility with multiple lumen packages, mounting options, lens styles and sensors. The casing is made in the USA with a robust build and a thick seal for durability in dusty or wet environments, it suits installation heights from 16 to 40 feet. Final assembly in Ontario, Canada ensures meticulous craftsmanship, making it the ideal lighting solution for your needs.
This unit excels in industrial, commercial and agricultural settings where protection against water and dust is crucial. Such as washbays, food storage warehouse, food processing plants, warehouses, welding factories, concrete factories, drive sheds, and more. Recommended for installation heights ranging from 16 to 40 feet, it’s an exceptional choice for demanding environments.
Approved for use in Canada and USA, QPS Certified, NSF Rated Components, Nema 4x rated
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 360L 36,000 Lumens |
| 9C 90 | 40K 4000K | 330L 33,000 Lumens |
| - | 50K 5000K | 300L 30,000 Lumens |
| - | 65K 6500K | 270L 27,000 Lumens |
| - | - | - |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|

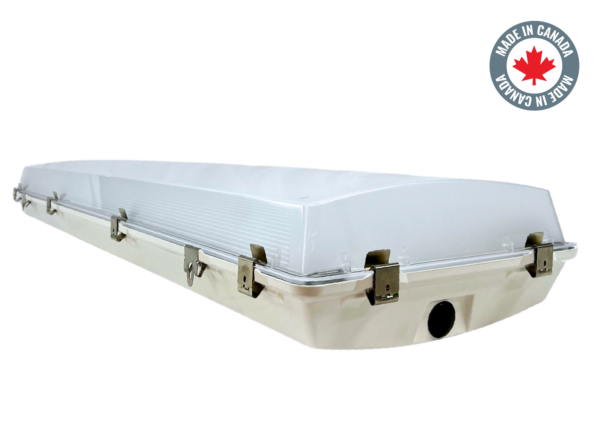

| FS Frosted Smooth | PM POM (Nylon Latches) | CH Chain Mount Hooks | Blank None |

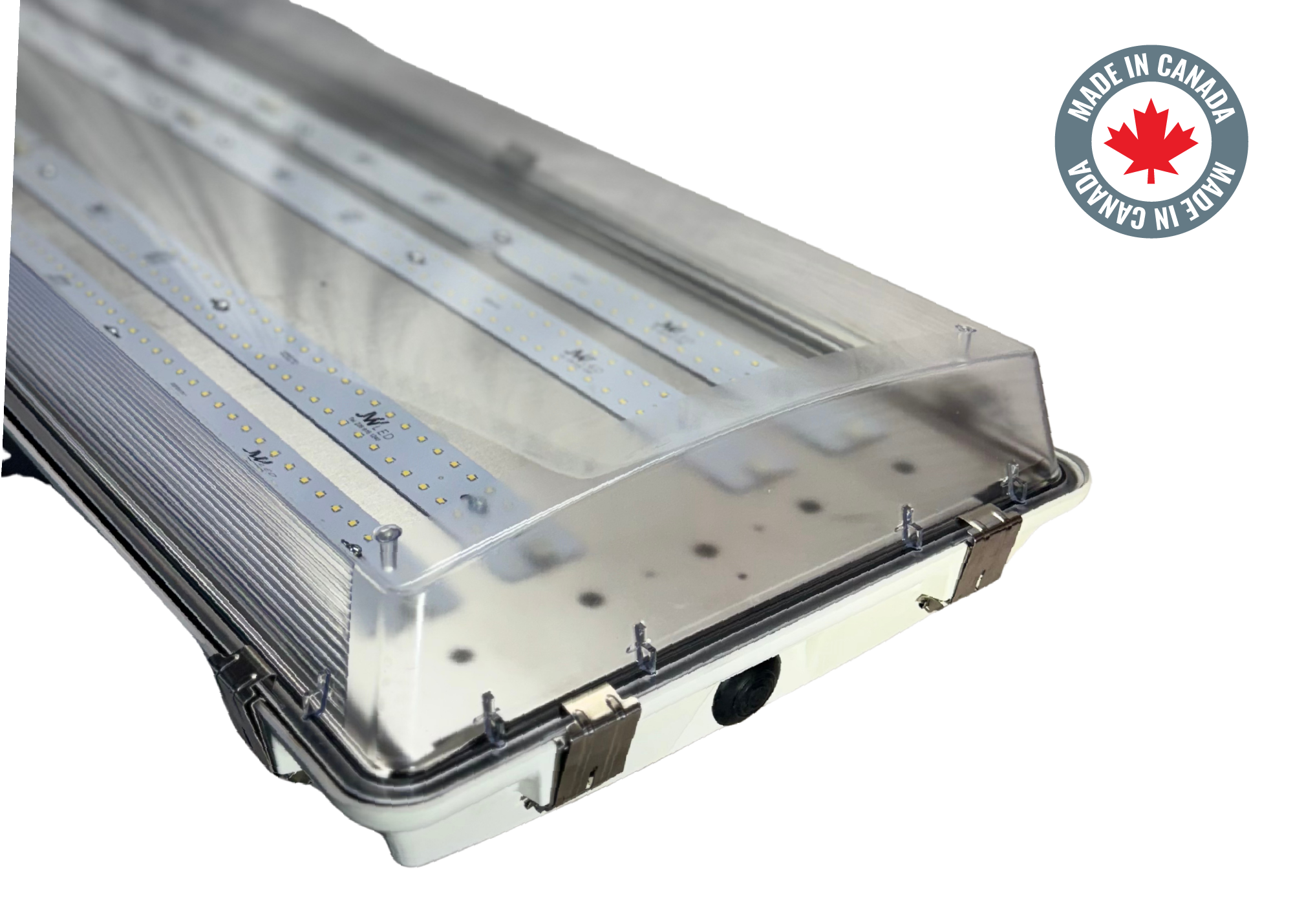

| CS Clear Smooth | SS Stainless Steel Latches | SM Surface Mount Hooks | RTP Retail Packaging |
| - | - | HM Heavy Duty Surface Mount Bracket | CD2 2’ Whip Pre-Wired (Black) |
| - | - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | - | SN1 PIR Motion Sensor |
| - | - | - | SN2 PIR Motion Sensor (IP66) |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 360L 36,000 Lumens |
| 9C 90 | 40K 4000K | 330L 33,000 Lumens |
| - | 50K 5000K | 300L 30,000 Lumens |
| - | 65K 6500K | 270L 27,000 Lumens |
| - | - | - |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|
| FS Frosted Smooth | PM POM (Nylon Latches) | CH Chain Mount Hooks | Blank None |
| CS Clear Smooth | SS Stainless Steel Latches | SM Surface Mount Hooks | RTP Retail Packaging |
| - | - | HM Heavy Duty Surface Mount Bracket | CD2 2’ Whip Pre-Wired (Black) |
| - | - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | - | SN1 PIR Motion Sensor |
| - | - | - | SN2 PIR Motion Sensor (IP66) |
