Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer
The LZ Series Standard Body 4’ fixture is a renowned vaportight fixture, ideal for applications needing extensive coverage on low to high ceilings. It offers versatility with multiple lumen packages and mounting options, featuring various latch and lens styles. The casing is made in the USA with a robust build and a thick seal for durability in dusty or wet environments, it suits installation heights from 12 to 22 feet. Final assembly in Ontario, Canada ensures meticulous craftsmanship, making it the ideal lighting solution for your needs
This unit excels in industrial, commercial and agricultural settings where protection against water and dust is crucial. It thrives in applications such as washbays, dairy barns, sheep barns, horse barns, pig barns, welding factories, concrete factories, car washes, and more. Recommended for installation heights ranging from 12 to 22 feet, it’s an exceptional choice for demanding environments.
Approved for use in Canada and USA, QPS Certified, NSF Rated Components, Nema 4x rated
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 178L 17,800 Lumens |
| 9C 90 | 40K 4000K | 164L 16,400 Lumens |
| - | 50K 5000K | 114L 11,400 Lumens |
| - | 65K 6500K | 090L 9,000 Lumens |
| - | - | - |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|
| CR Clear Ribbed | PM POM (Nylon Latches) | MB Surface/Chain Mount Brackets | Blank None |

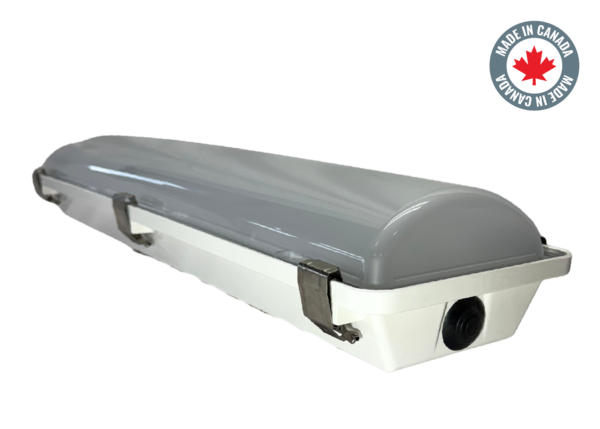

| FR Frosted Ribbed | SS Stainless Steel Latches | NM No Mount Brackets | RTP Retail Packaging |

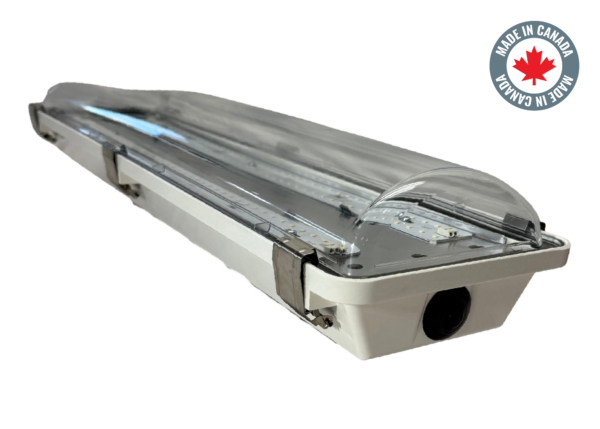

| CS Clear Smooth | CD2 2’ Whip Pre-Wired (Black) | ||
| FS Frosted Smooth | CD3 3’ Whip Pre-Wired (Black) | ||
| SN1 PIR Motion Sensor | |||
| SN2 PIR Motion Sensor (IP66) |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 178L 17,800 Lumens |
| 9C 90 | 40K 4000K | 164L 16,400 Lumens |
| - | 50K 5000K | 114L 11,400 Lumens |
| - | 65K 6500K | 090L 9,000 Lumens |
| - | - | - |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|
| CR Clear Ribbed | PM POM (Nylon Latches) | MB Surface/Chain Mount Brackets | Blank None |
| FR Frosted Ribbed | SS Stainless Steel Latches | NM No Mount Brackets | RTP Retail Packaging |
| CS Clear Smooth | CD2 2’ Whip Pre-Wired (Black) | ||
| FS Frosted Smooth | CD3 3’ Whip Pre-Wired (Black) | ||
| SN1 PIR Motion Sensor | |||
| SN2 PIR Motion Sensor (IP66) |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 178L 17,800 Lumens |
| 9C 90 | 40K 4000K | 164L 16,400 Lumens |
| - | 50K 5000K | 114L 11,400 Lumens |
| - | 65K 6500K | 090L 9,000 Lumens |
| - | - | - |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|
| CR Clear Ribbed | PM POM (Nylon Latches) | MB Surface/Chain Mount Brackets | Blank None |
| FR Frosted Ribbed | SS Stainless Steel Latches | NM No Mount Brackets | RTP Retail Packaging |
| CS Clear Smooth | CD2 2’ Whip Pre-Wired (Black) | ||
| FS Frosted Smooth | CD3 3’ Whip Pre-Wired (Black) | ||
| SN1 PIR Motion Sensor | |||
| SN2 PIR Motion Sensor (IP66) |
