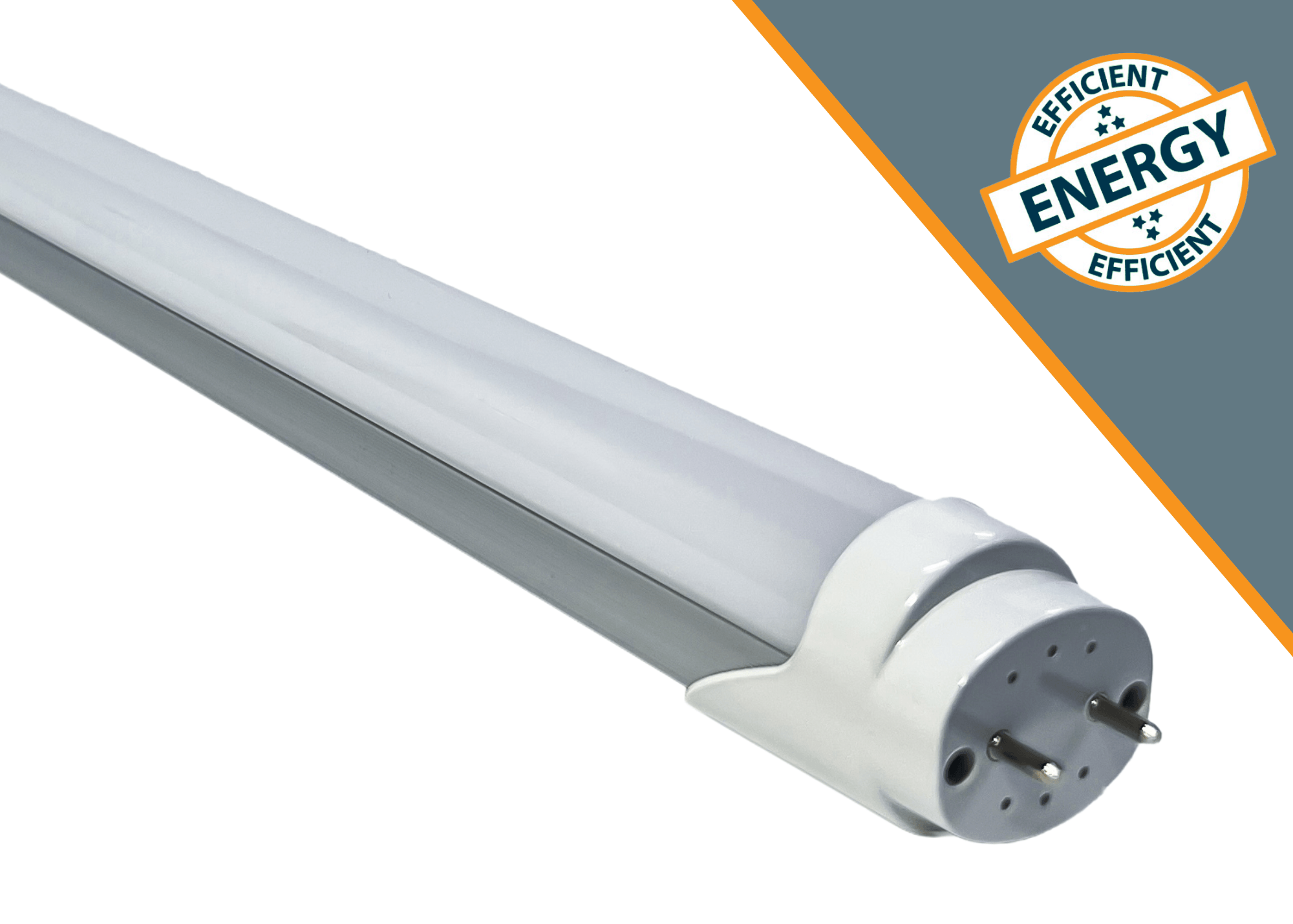

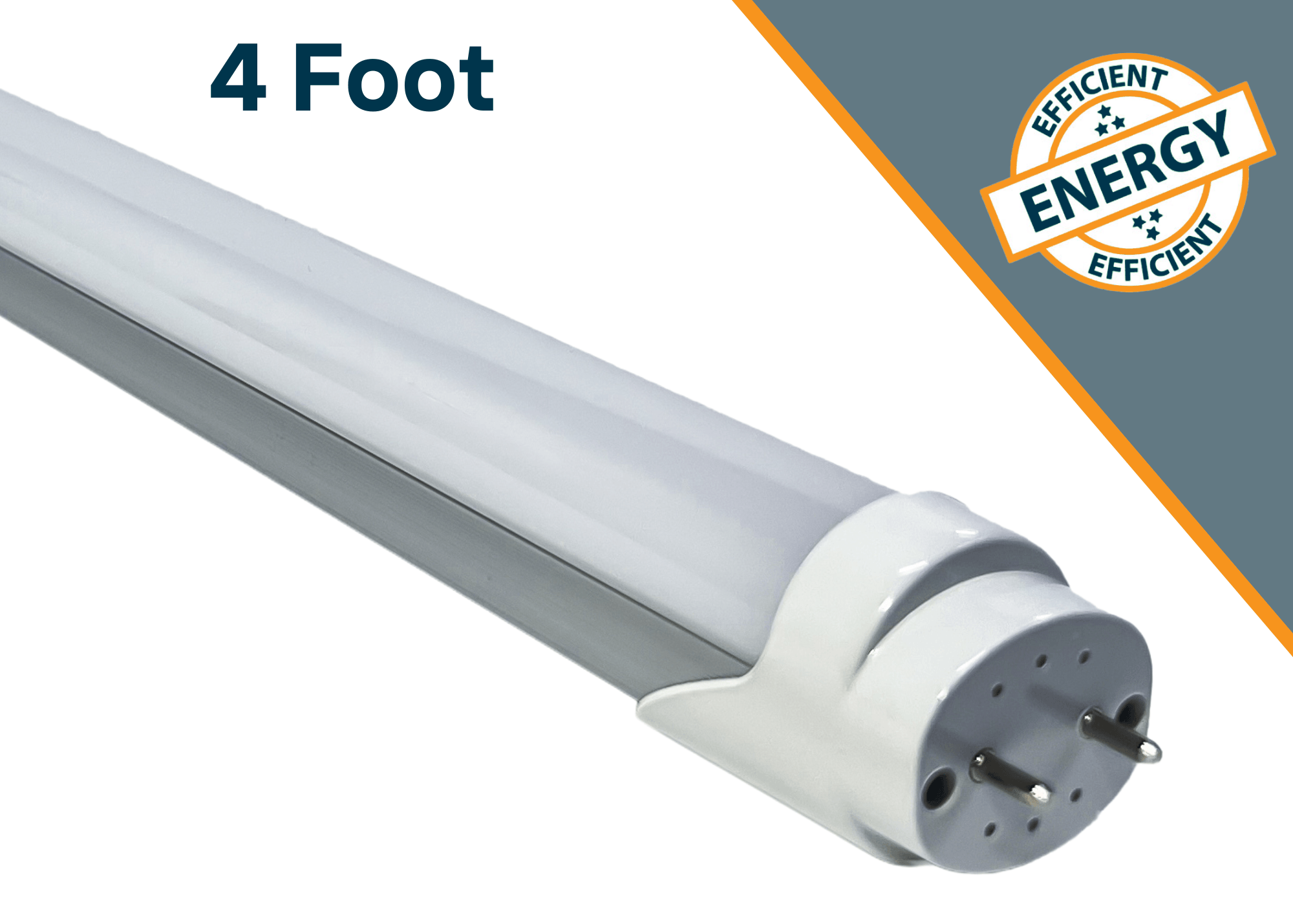

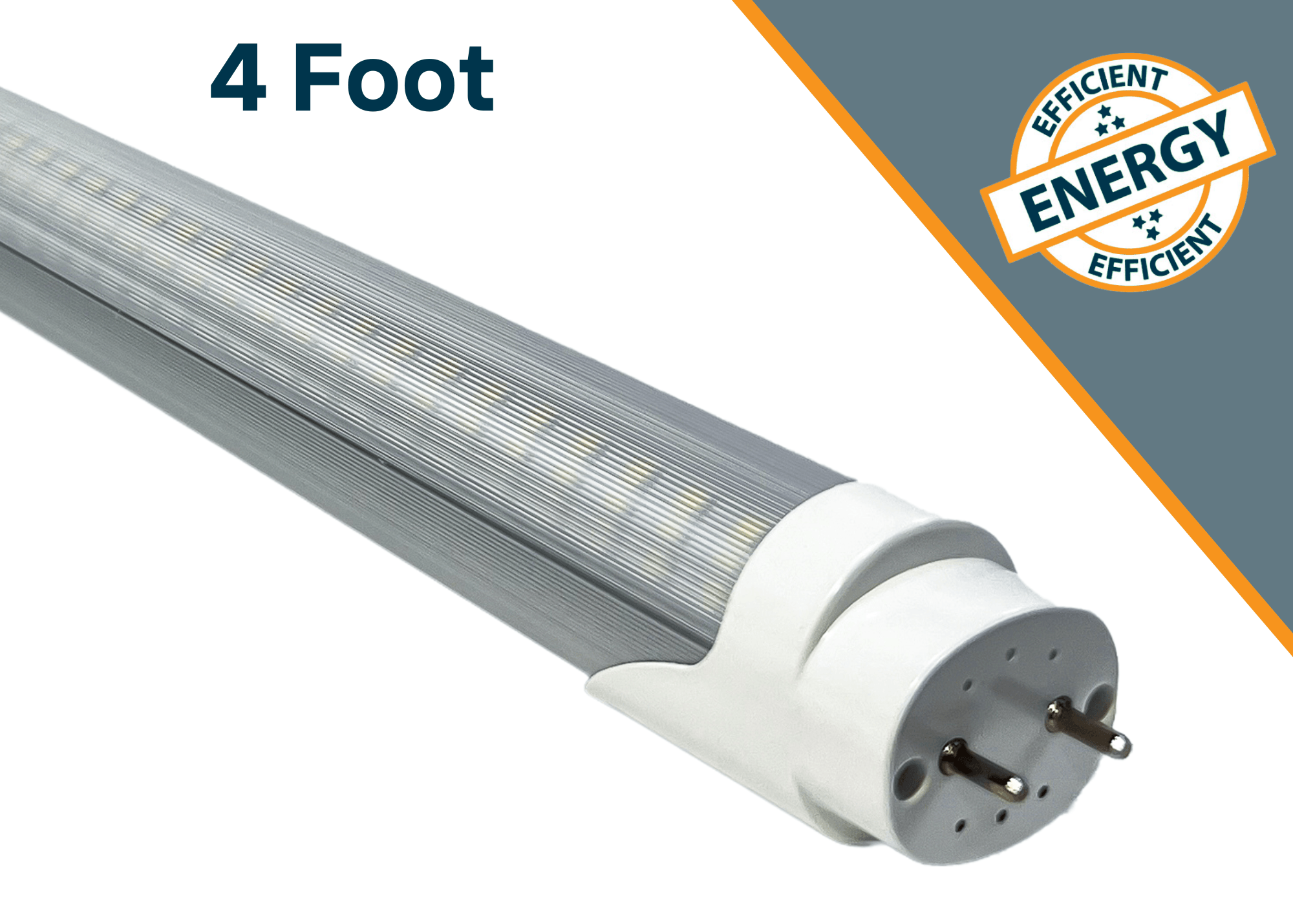

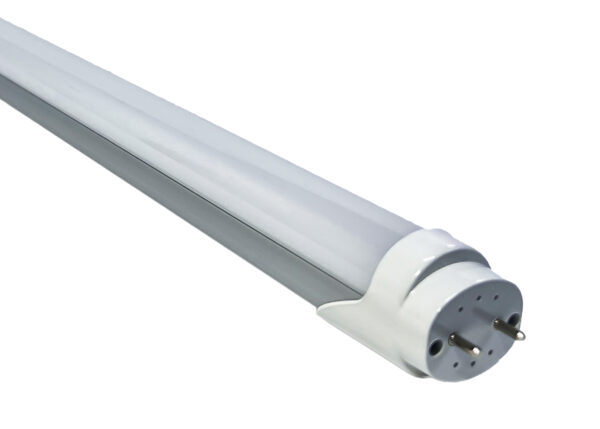

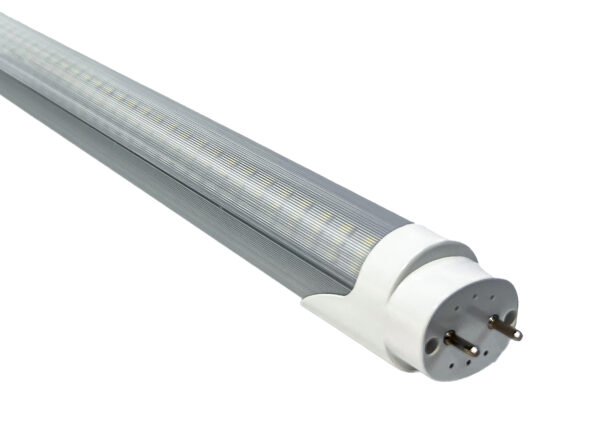

The RL Series lamps provide an energy-efficient and cost-effective upgrade from traditional fluorescent lighting. Installation is straightforward, requiring only the bypassing of the ballast and direct wiring to the tombstones. With a wide range of color options, lens styles, and lumen outputs, these lamps are versatile and can seamlessly replace existing fluorescent or LED bulbs in virtually any fixture. Ideal for enhancing both performance and aesthetics, the RL Series combines ease of installation with flexible options to suit your specific lighting needs.
This unit excels in retrofit applications where existing lamps require replacement or upgrading. Commonly installed in retail stores, offices, hallways, garages, workshops, basements, and numerous other commercial, industrial, and agricultural environments requiring efficient, reliable lighting solutions.
Approved for use in Canada and USA.
Includes standard 5-year warranty-view our warranty policy for complete details.
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 50K 5000K | 028L 2,800 (4 Foot) |
| - | 65K 6500K (4 Foot) | 018L 1,800 (3 Foot) |
| - | - | 014L 1,400 (2 Foot) |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | ND Non-Dimmable | |
| - | - | |
| - | - | |
| - | - |
| Lens | Mounting | Options |
|---|---|---|
| FS Frosted Smooth (Single End Power) | ||
| CS Clear Smooth (4 Foot) | ||
| - | ||
| - |
| Type | Length |
|---|---|
| T08 T8 Lamp | 4 4 Foot |
| - | 3 3 Foot |
| - | 2 2 Foot |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 50K 5000K | 028L 2,800 (4 Foot) |
| - | 65K 6500K (4 Foot) | 018L 1,800 (3 Foot) |
| - | - | 014L 1,400 (2 Foot) |
| Voltage | Driver | Wiring |
|---|---|---|
| UNV 120-277V | ND Non-Dimmable | SE Single End Power |
| - | - | DE Double End Power (Clear Lens) |
| - | - | - |
| - | - | - |
| Lens | Pin Set |
|---|---|
| FS Frosted Smooth (Single End Power) | T8 Standard T8 Pins |
| CS Clear Smooth (4 Foot) | - |
| - | - |
| - | - |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 50K 5000K | 028L 2,800 (4 Foot) |
| - | 65K 6500K (4 Foot) | 018L 1,800 (3 Foot) |
| - | - | 014L 1,400 (2 Foot) |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | ND Non-Dimmable | |
| - | - | |
| - | - | |
| - | - |
| Lens | Mounting | Options |
|---|---|---|
| FS Frosted Smooth (Single End Power) | ||
| CS Clear Smooth (4 Foot) | ||
| - | ||
| - |
IES Files Coming Soon!
