Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer

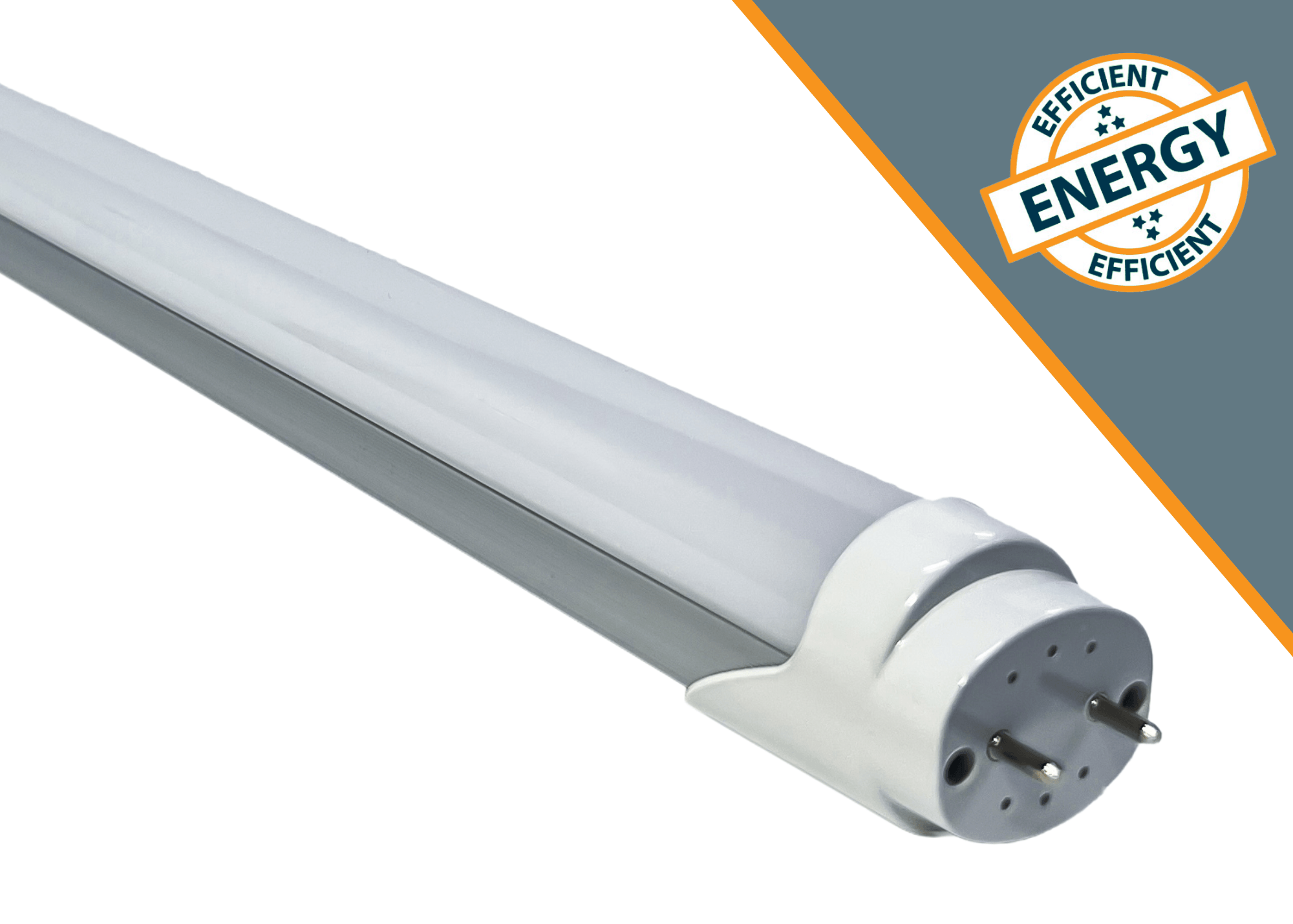

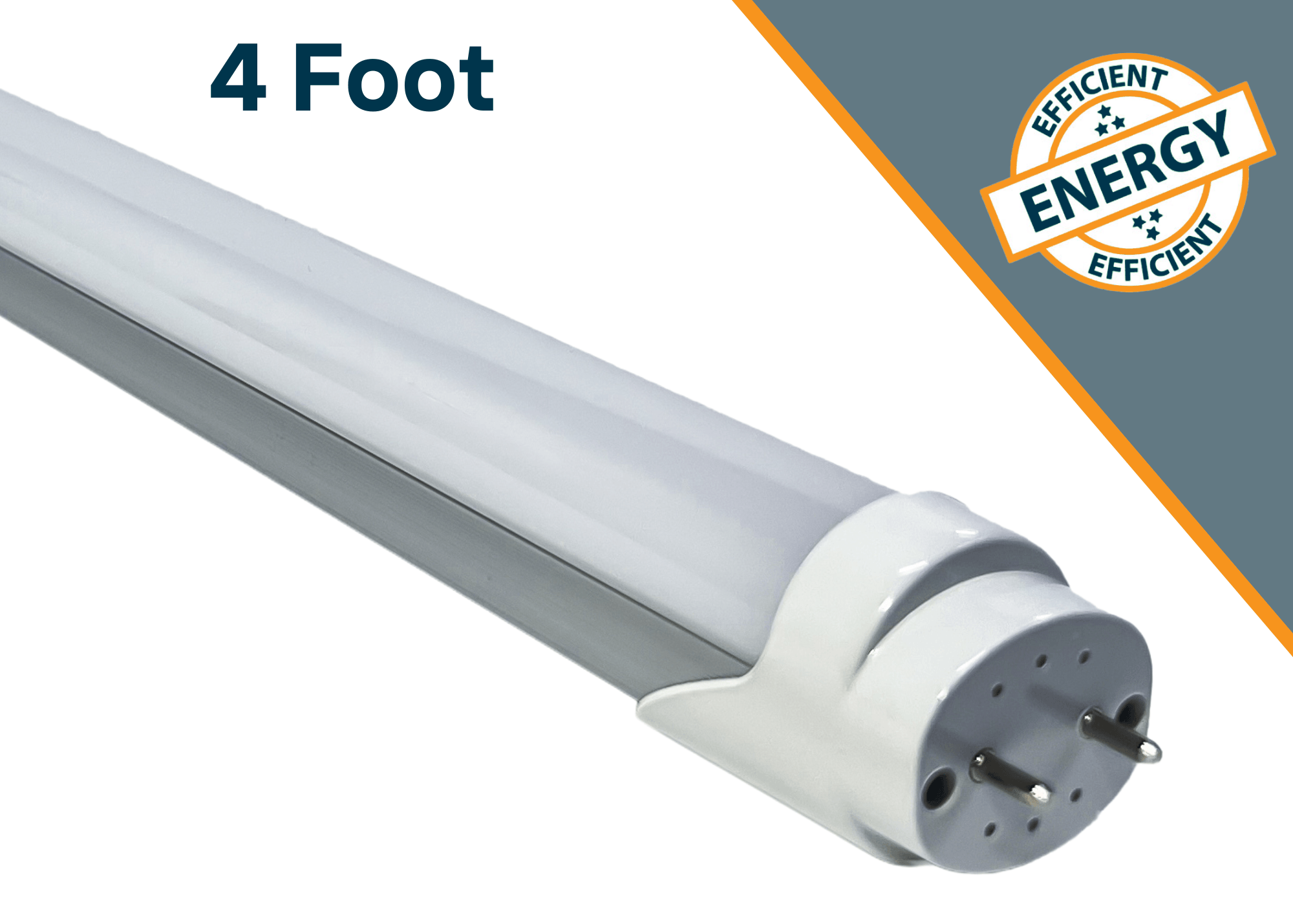

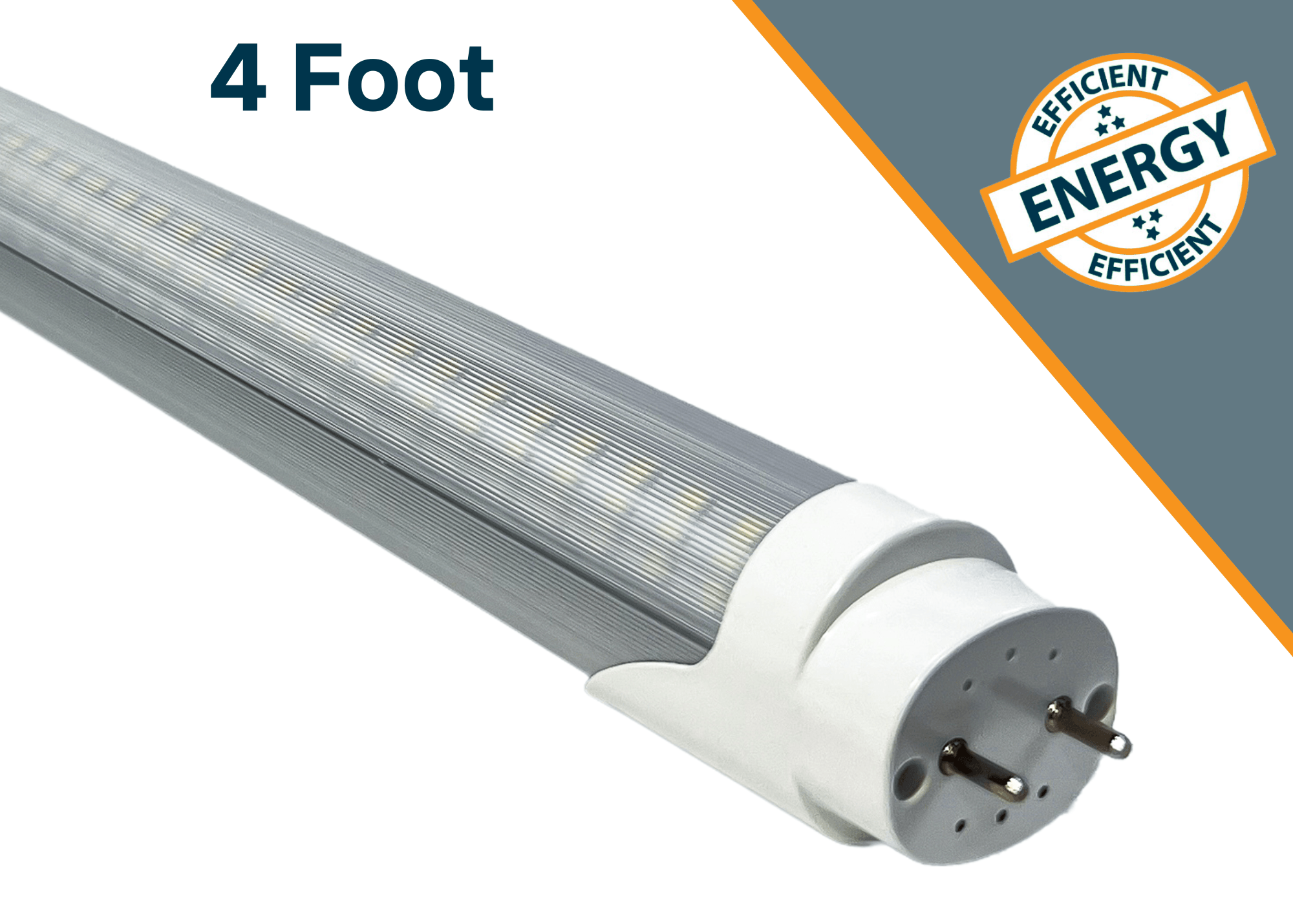

The RL Series lamps provide an energy-efficient and cost-effective upgrade from traditional fluorescent lighting. Installation is straightforward, requiring only the bypassing of the ballast and direct wiring to the tombstones. With a wide range of color options, lens styles, and lumen outputs, these lamps are versatile and can seamlessly replace existing fluorescent or LED bulbs in virtually any fixture. Ideal for enhancing both performance and aesthetics, the RL Series combines ease of installation with flexible options to suit your specific lighting needs.
This unit excels in any application that has existing lamps that you want to replace. Typically used in areas such as retail stores, offices, hallways, garages, shops, basements and many more commercial, industrial or agricultural settings.
Approved for use in Canada and USA
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 CRI | 50K 5000K | 028L 2,800 Lumens (4 Foot) |
| - | 65K 6500K (4 Foot | 018L 1,800 Lumens (3 Foot) |
| - | - | 014L 1,400 Lumens (2 Foot) |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | ND Non-Dimmable | |
| - | - | |
| - | - |
| Lens | Mounting | Options |
|---|---|---|

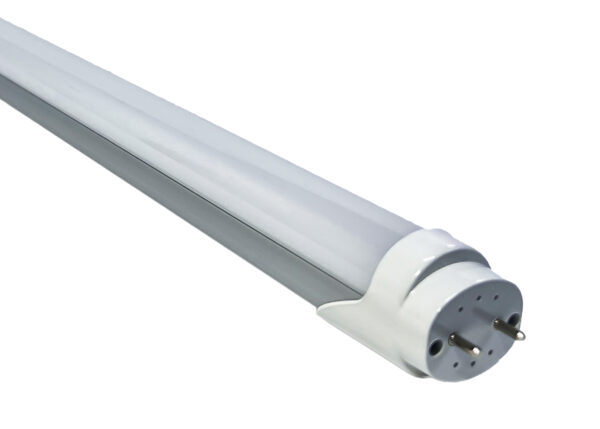

| FS Frosted Smooth (Single End Power) | ||

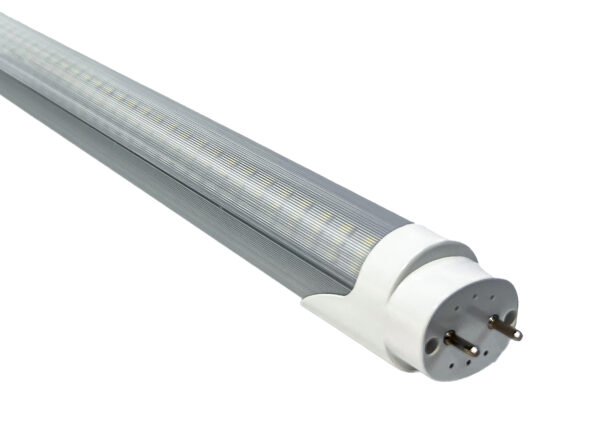

| CS Clear Smooth (4 Foot) | ||
| - |
| Type | Length |
|---|---|
| T08 T8 Lamp | 4 4 Foot |
| - | 3 3 Foot |
| - | 2 2 Foot |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 CRI | 50K 5000K | 028L 2,800 Lumens (4 Foot) |
| - | 65K 6500K (4 Foot | 018L 1,800 Lumens (3 Foot) |
| - | - | 014L 1,400 Lumens (2 Foot) |
| Voltage | Driver | Wiring |
|---|---|---|
| UNV 120-277V | ND Non-Dimmable | SE Single End Power |
| - | - | DE Double End Power (Clear Lens) |
| - | - | - |
| Lens | Pin Set |
|---|---|
| FS Frosted Smooth (Single End Power) | T8 Standard T8 Pins |
| CS Clear Smooth (4 Foot) | - |
| - | - |
