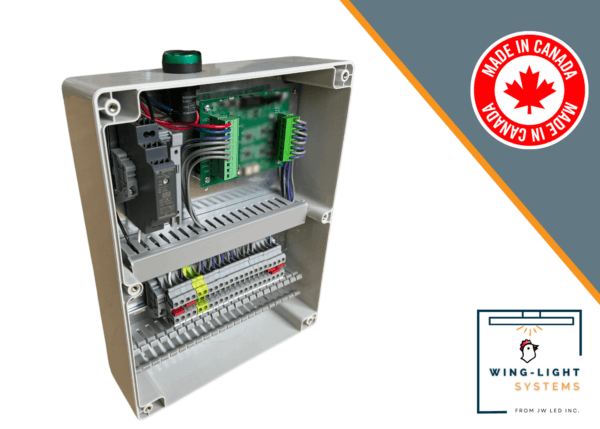

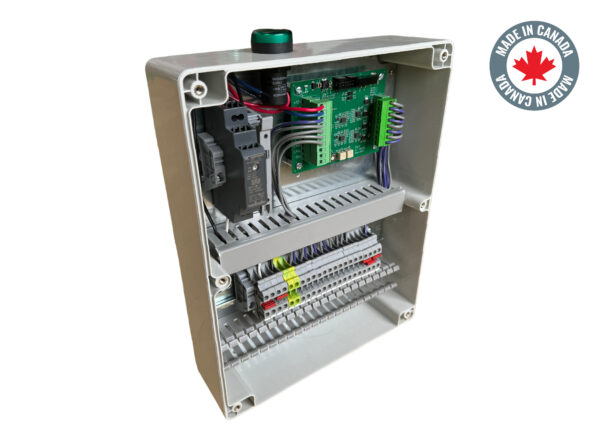

Our 0-10V dimming control acts as a seamless bridge between traditional poultry barn controllers and our Winglight luminaires, therefore allowing users to operate lighting schedules and settings right from the main barn controler. It addresses the issue where 0-10V dimmable LED fixtures need a “sink” signal while poultry controllers provide a “source” signal by converting source signals into sink signals. With four independent zones, it enables you to manage lighting across different barns or areas, and its custom program ensures that light output directly corresponds to the percentage set on your poultry controller—so a 50% setting results in 50% light output.
This unit is designed for installation in poultry barn control rooms, serving as the central hub for managing Winglight lighting systems across multiple barns or areas. It's ideal for facilities requiring precise lighting control, automated scheduling, and seamless integration with existing poultry management systems.
Approved for use in Canada and USA
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|
| Voltage | Driver | 0-10V Wiring |
|---|
| Lens | Mounting | Options |
|---|---|---|
| AC Voltage | Number Of Zones | Number Of Lights Per Zone |
|---|---|---|
| UNV 120-277V | 4 4 Zones | 2P Max 250 Fixtures Per Zone |
| - | 3 3 Zones | - |
| - | 2 2 Zones | - |
| - | 1 1 Zones | - |
IES Files Coming Soon!
Another poultry barn done with Wing-light by JW LED Inc. Discover the new way of lighting!
Featuring the Wing-Light System 0–10V Smooth Dimming | Flicker-Free Performance Ultra-Low Dimming Down to 0.1%
