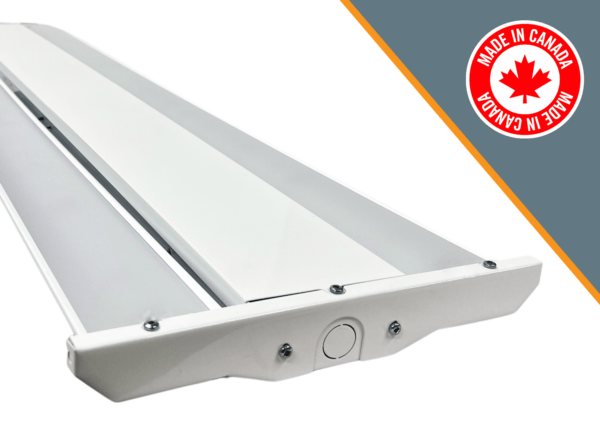

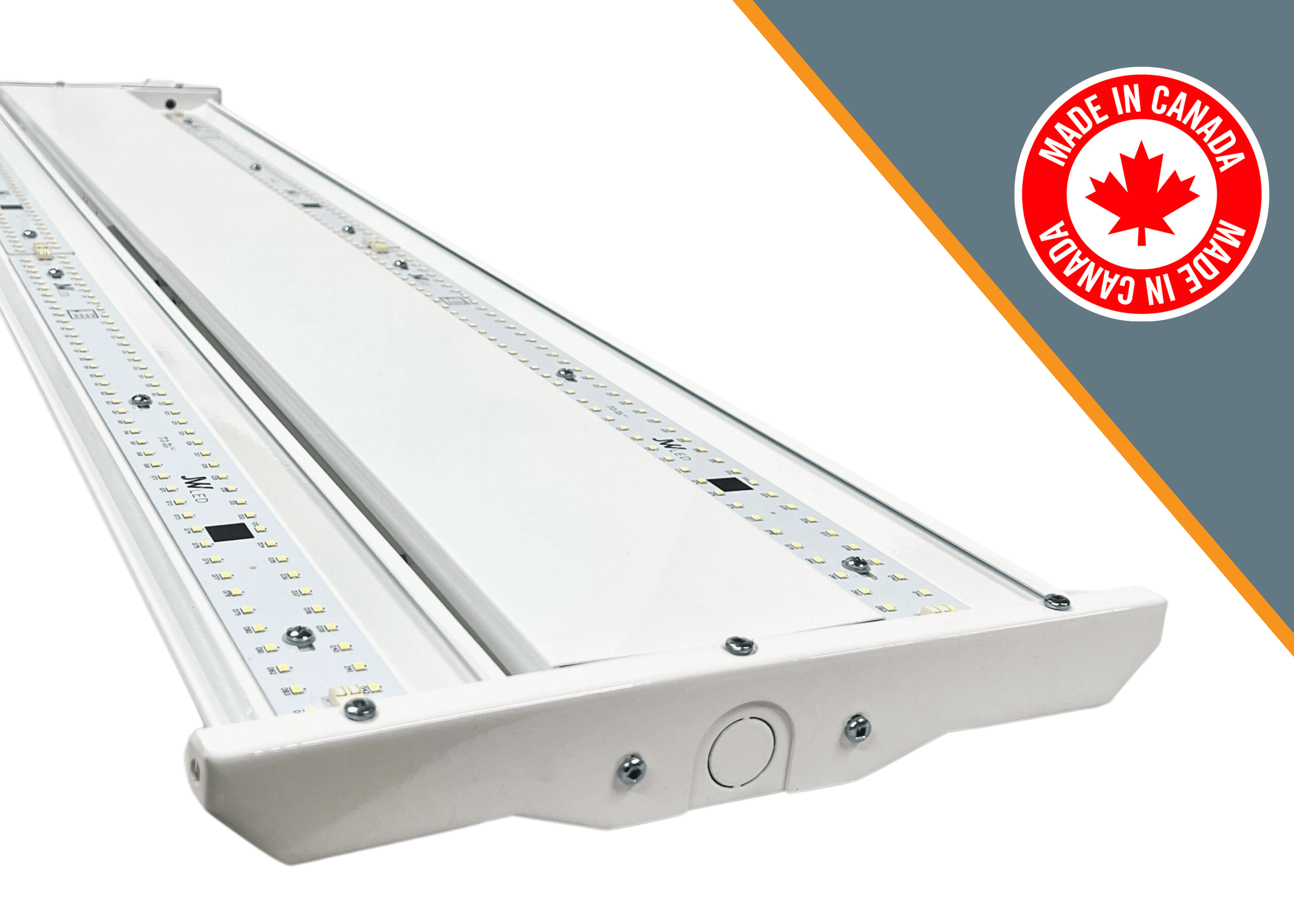

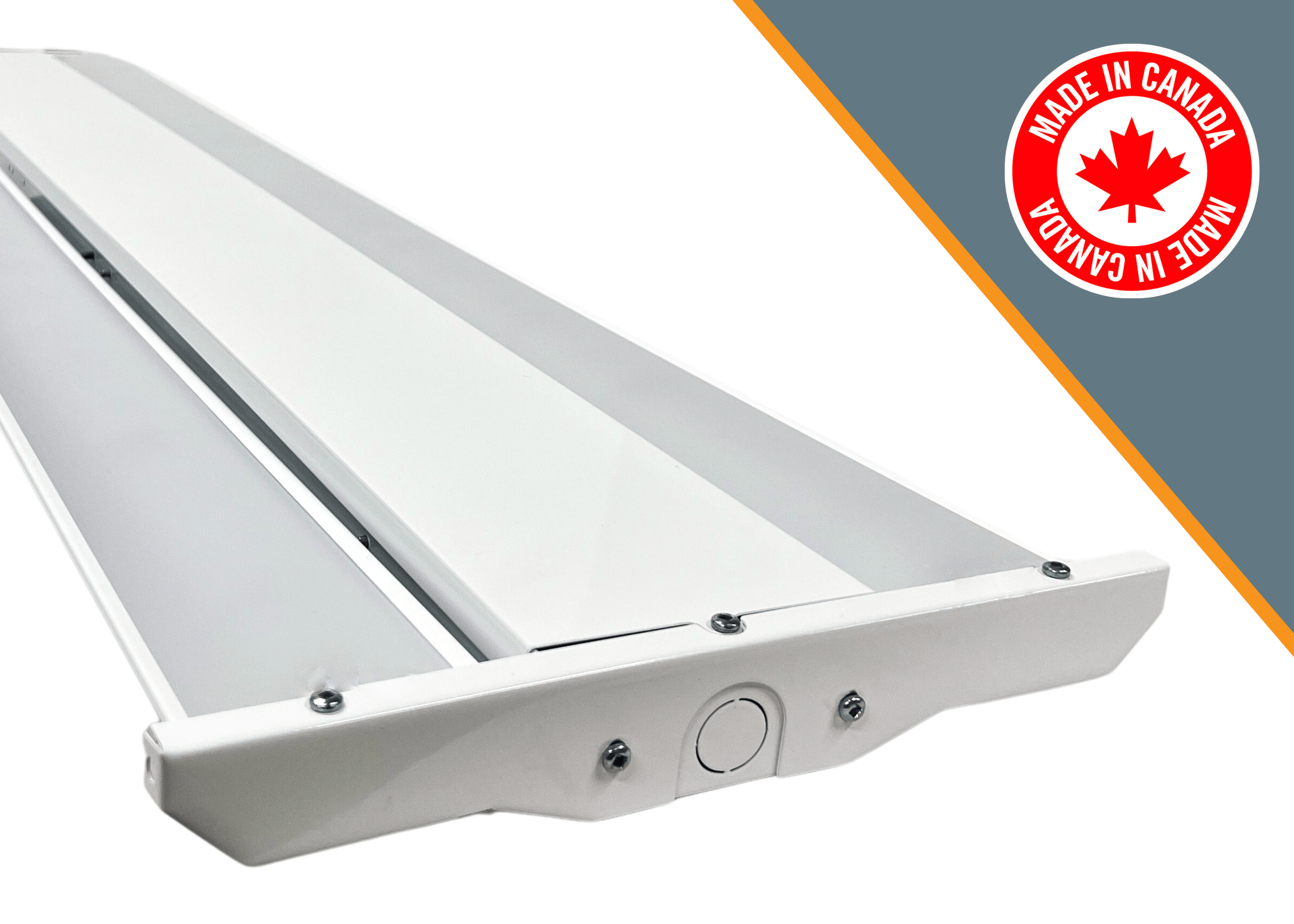

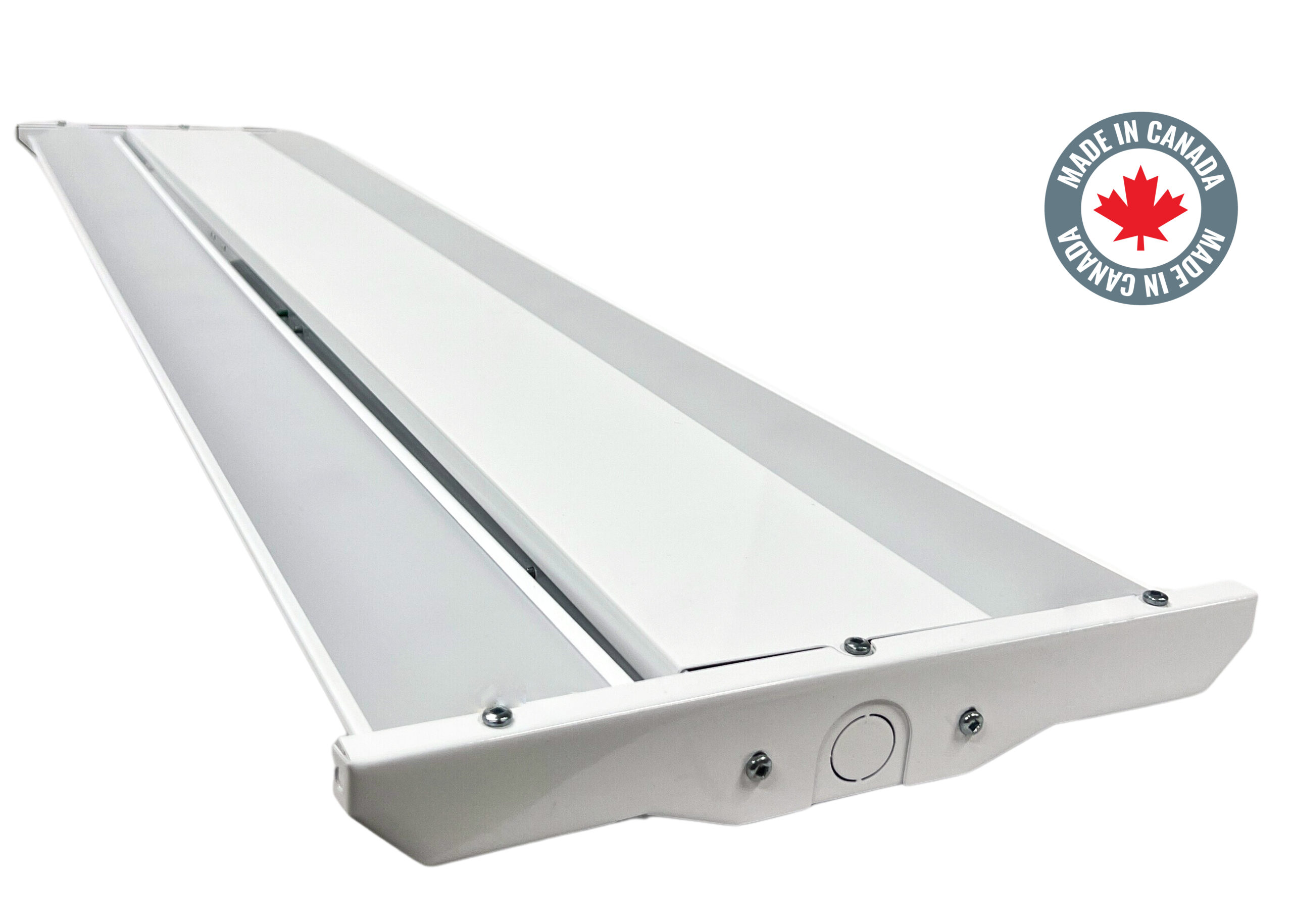

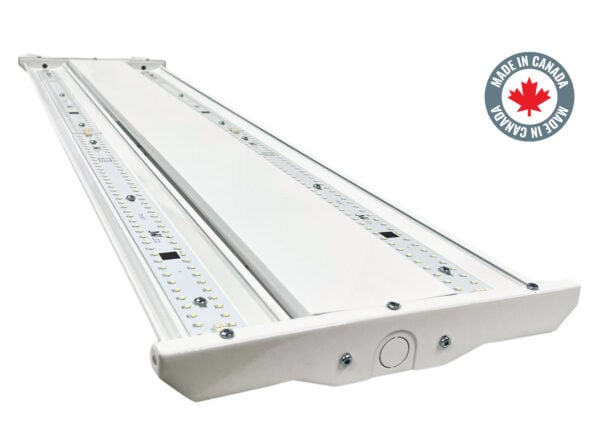

1’x4’ Highbay (Commercial/Industrial Grade) 10,000-19,500 Lumens
1’x4’ Highbay (Commercial/Industrial Grade) 10,000-19,500 Lumens

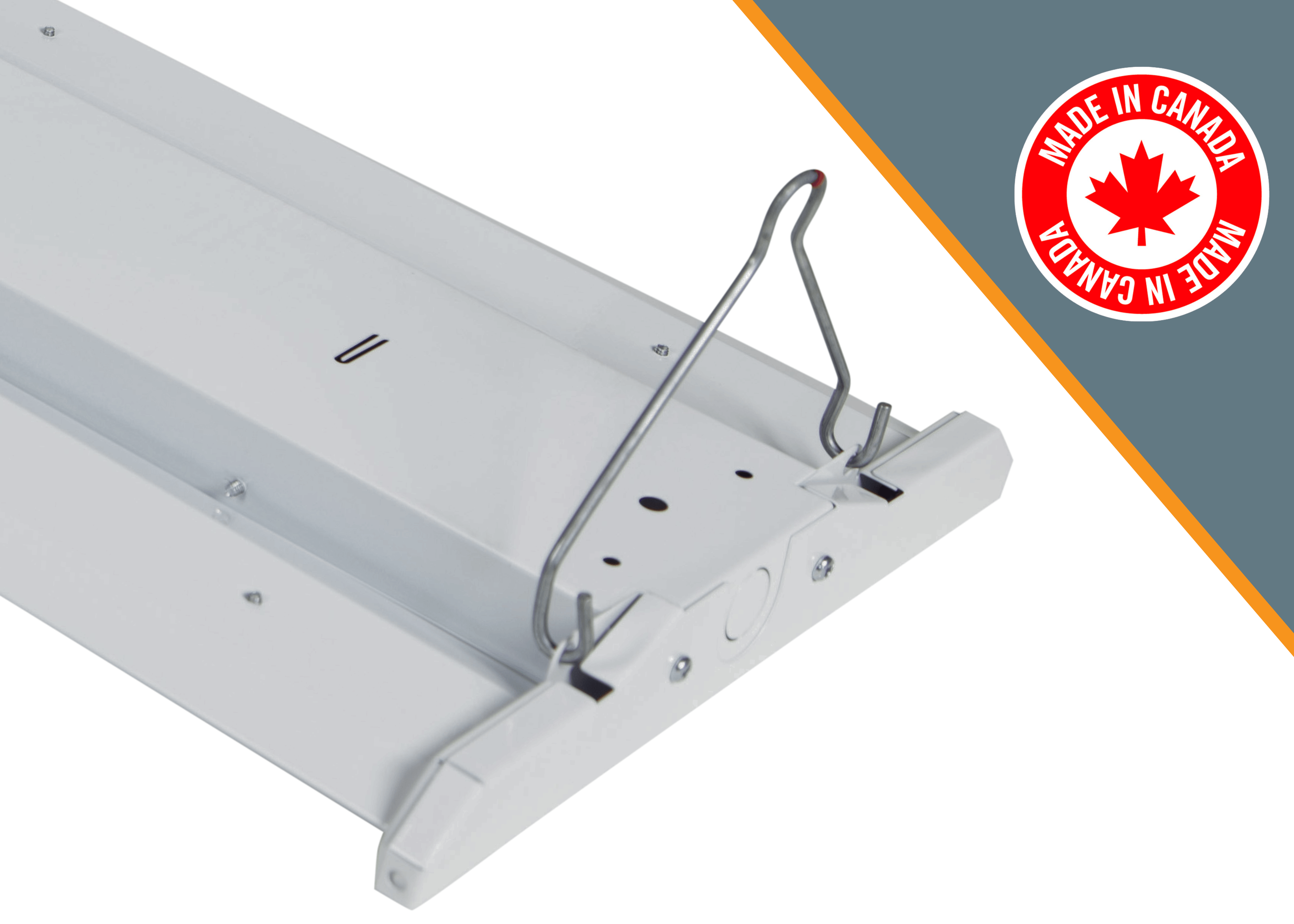

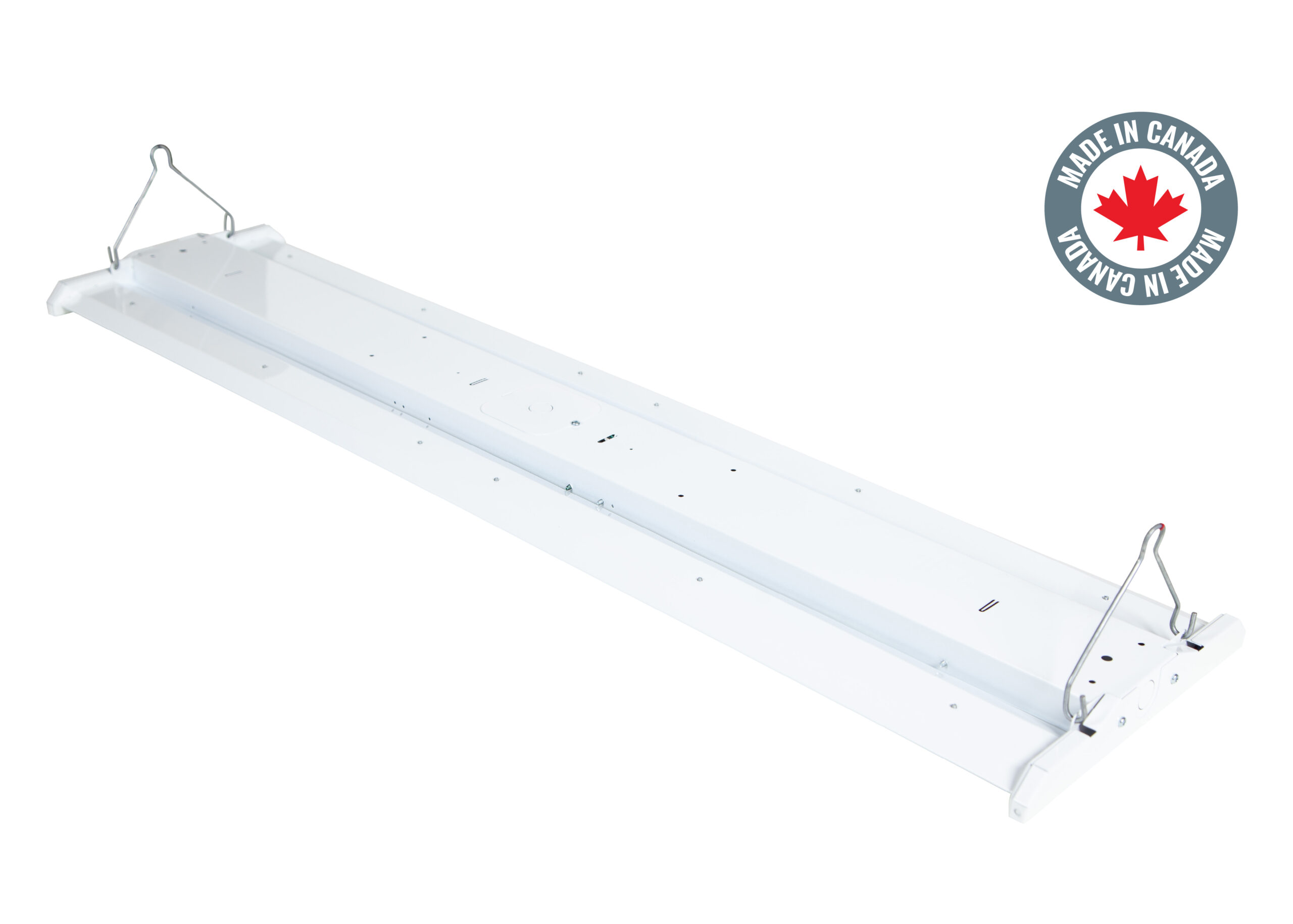

BA-14 shown with optional hanger kit.

1'x4' Commercial/Industrial Grade High-Bay 13,000-30,000 Lumens

SKU: BA14 Categories: , , , ,

The BA Series 1 'x4' fixture delivers precision-engineered illumination across expansive spaces with its wide 120-degree distribution angle, making it the optimal choice for applications demanding broad coverage. Engineered for mid to high ceilings, this versatile LED offers multiple lumen packages and mounting configurations to suit diverse project requirements. Its robust thermal management system ensures unwavering performance in demanding environments, accommodating installation heights from 14 to 40 feet. Handcrafted with pride in Ontario, Canada, it's the reliable lighting solution for your most demanding projects.

Login to view pricing and availability
Don’t have an account? Simply click "Request a Quote" fill out the RFQ form, and we'll get back to you promptly with pricing and availability.

Product Overview

Ordering Guide

Downloads

Application

This unit excels in industrial, commercial, and agricultural environments including metal fabricating facilities, woodworking shops, storage buildings, warehouses, drive sheds, farm shops, grocery stores, retail spaces, aircraft hangars, hockey rinks, hobby shops, and countless other applications.

Features

  • Configurations delivering over 160 lm/W.
  • Ultra-slim 1.75" profile designed for tight-fit applications.
  • Standard 0-1 0V dimming provides precise lighting control.
  • High-performance LED boards manufactured in-house.

Options

  • Wide range of lumen outputs to meet diverse requirements.
  • Variety of motion sensors and control options available.
  • Customizable color temperature & CRI values for optimal lighting.
  • Pre-wired whips enable quick, efficient installation.

Mounting

  • Surface - mounts directly to any ceiling or wall.
  • Suspension - chain hangers available as additional option.

Approvals

Approved for use in Canada and USA, QPS certified.

Warranty

Includes standard 5-year warranty-view our warranty policy for complete details.

Ordering Guide

Example:
BA14-8CS0K195L-UNVD1 NW-NLSM
BA14
CRI CCT Lumens
8C 80 30K 3000K 300L 30,000
9C 90 40K 4000K 270L 27,000
- 50K 5000K 240L 24,000
- 65K 6500K 195L 19,500
- - 160L 16,000
- - 130L 13,000
Voltage Driver 0-10V Wiring
UNV 120-277V D1 0-10V 1% NW Not Wired For Dim
347 347V - PW Pre-Wired For Dim
- - -
- - -
- - -
- - -
Lens Mounting Options
NL No Lens SM Surface Mount Blank None
FS Frosted Smooth CH Chain Hanger Hooks RTP Retail Packaging
- - CD3 3’ Whip Pre-Wired (Black)
- - MS5 Motion Sensor for Aisleway
- - MS4 Motion Sensor For 360
- - -
CRI CCT Lumens
8C 8030K 3000K300L 30,000
9C 9040K 4000K270L 27,000
-50K 5000K240L 24,000
-65K 6500K195L 19,500
--160L 16,000
--130L 13,000
Voltage Driver 0-10V Wiring
UNV 120-277VD1 0-10V 1%NW Not Wired For Dim
347 347V-PW Pre-Wired For Dim
---
---
---
---
Lens Mounting Options
NL No LensSM Surface MountBlank None
FS Frosted SmoothCH Chain Hanger HooksRTP Retail Packaging
--CD3 3’ Whip Pre-Wired (Black)
--MS5 Motion Sensor for Aisleway
--MS4 Motion Sensor For 360
---
CRI CCT Lumens
8C 80 30K 3000K 300L 30,000
9C 90 40K 4000K 270L 27,000
- 50K 5000K 240L 24,000
- 65K 6500K 195L 19,500
- - 160L 16,000
- - 130L 13,000
Voltage Driver 0-10V Wiring
UNV 120-277V D1 0-10V 1% NW Not Wired For Dim
347 347V - PW Pre-Wired For Dim
- - -
- - -
- - -
- - -
Lens Mounting Options
NL No Lens SM Surface Mount Blank None
FS Frosted Smooth CH Chain Hanger Hooks RTP Retail Packaging
- - CD3 3’ Whip Pre-Wired (Black)
- - MS5 Motion Sensor for Aisleway
- - MS4 Motion Sensor For 360
- - -
Reset

Request a Quote

226-916-1240

Don't hesitate to contact us

sales@jwled.ca

Don't hesitate to mail us

First Name(Required)
Last Name(Required)

Accessories

Flush Mount Occupancy Sensor, 347V

Flush Mount Occupancy Sensor, 347V

Programmable 360° flush mount sensor designed for the BA Series. Provides reliable motion detection at mounting heights from 10-40 feet, ensuring full-room coverage and energy savings. Ideal for Agricultural, industrial, and commercial spaces.
Read More
Flush Mount Occupancy Sensor, 120-277V

Flush Mount Occupancy Sensor, 120-277V

Programmable 360° flush mount sensor designed for the BA Series. Provides reliable motion detection at mounting heights from 10-40 feet, ensuring full-room coverage and energy savings. Ideal for Agricultural, industrial, and commercial spaces.
Read More
BA Series, 4 Foot Lid With Sensor Cutout

4 Foot Lid With Sensor Cutout

Specifically designed for 4-foot BA-Series models, this replacement lid is required when installing the flush mount occupancy sensor. Ensures a secure fit and proper functionality.
Read More

Chain Mount Hook For BA-Series Fixtures

Easy mount chain hanger hook for BA-Series fixtures Attach the hooks to the fixture and then connect your chain Two hooks are required per BA Series fixture.
Read More
BA Series, 4 Foot Frosted Lens

4 Foot Frosted Smooth Acrylic Lens

Frosted diffusers help reduce the sharpness of the LED's. They can be removed or applied any time with a simple click in design. Sold in single units, 1 lens per LED strip is required in all BA and SP Series models.
Read More
