Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer

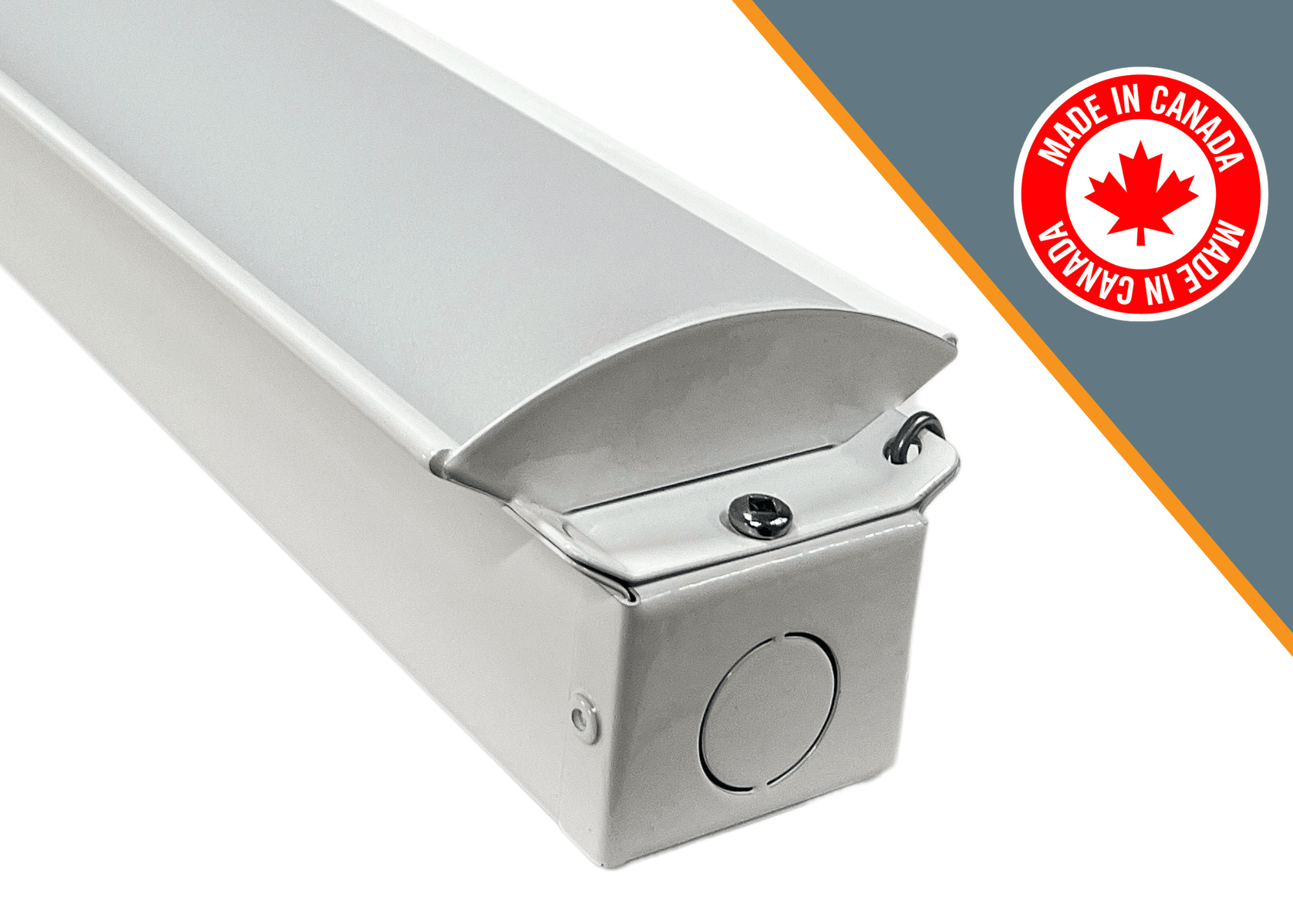

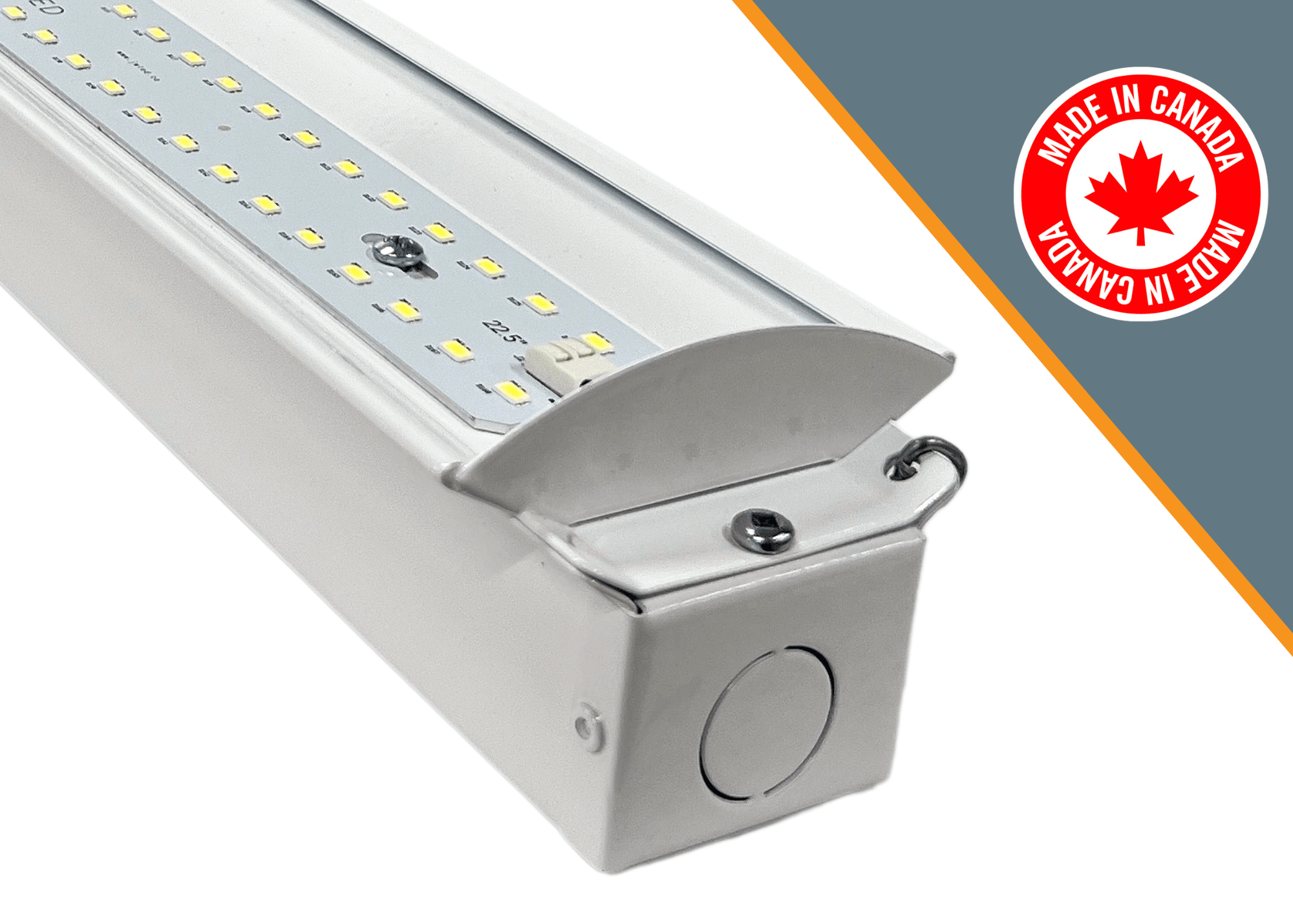

The SP Series Linear 4’ fixture is meticulously engineered to provide expansive illumination with a wide distribution angle, making it perfect for applications needing broad coverage on medium to low ceilings. It offers versatility with multiple lumen packages and mounting options. Its innovative design facilitates easy row mounting, transforming two fixtures into an 8-foot unit, suitable for installation heights ranging from 6 to 20 feet. Handcrafted in Ontario, Canada, it represents the ideal choice for your lighting requirements.
This unit is a great option for industrial, commercial or agricultural applications such as metal fabricating shops, mezzamines, garages, offices, hallway’s, workbenches, grocery stores, tool stores, retail stores, airplane hangers, repair rooms, hobby shops and many more. Recommended Installation Height Is 6 to 20 Feet.
Approved for use in Canada and USA, QPS Certified
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 097L 9,750 Lumens |
| 9C 90 | 40K 4000K | 080L 8,000 Lumens |
| - | 50K 5000K | 060L 6,000 Lumens |
| - | 65K 6500K | 040L 4,000 Lumens |
| - | - | 020L 4,000 Lumens |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|

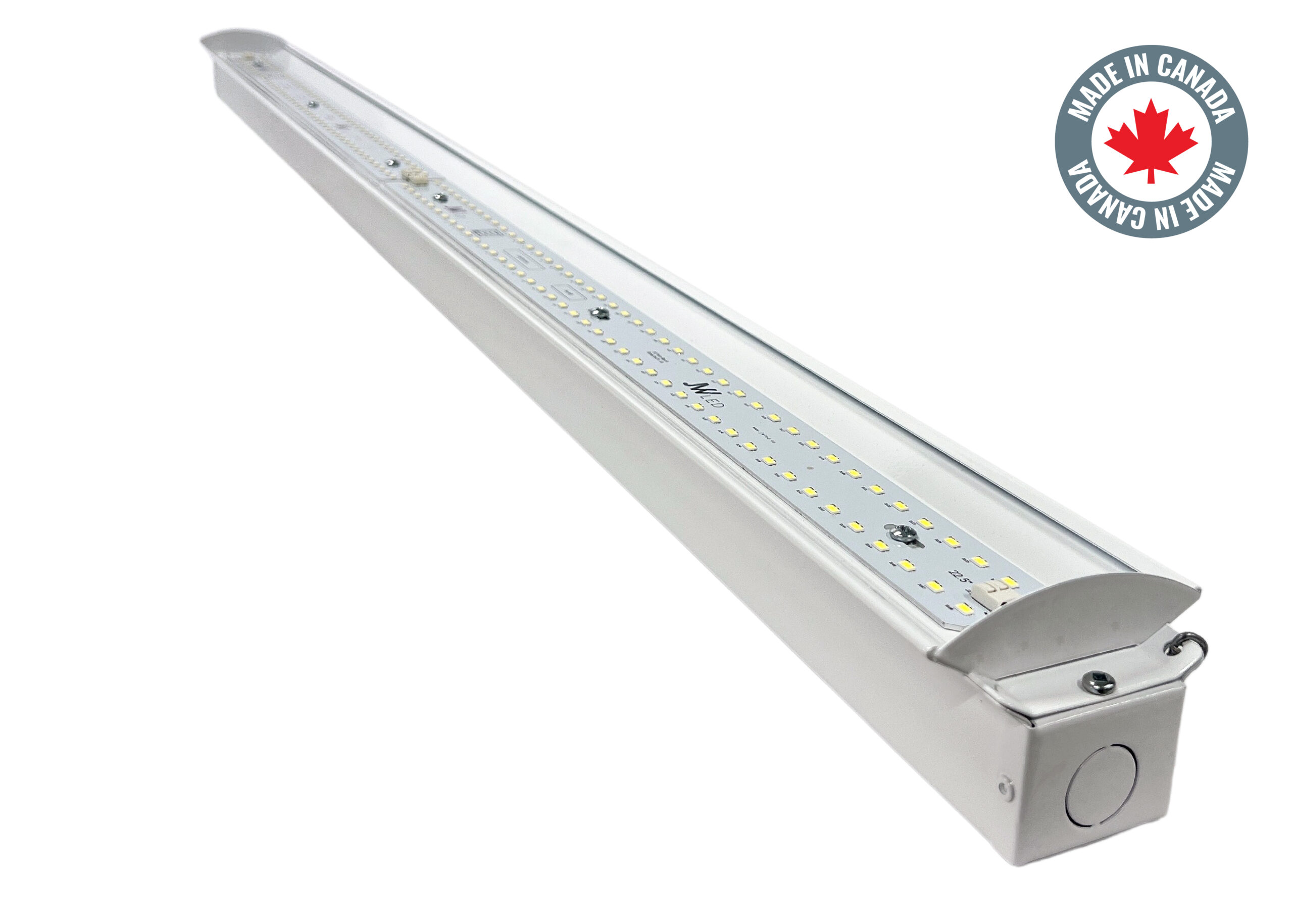

| NL No Len | SM Surface or Chain Mountable | Blank None |

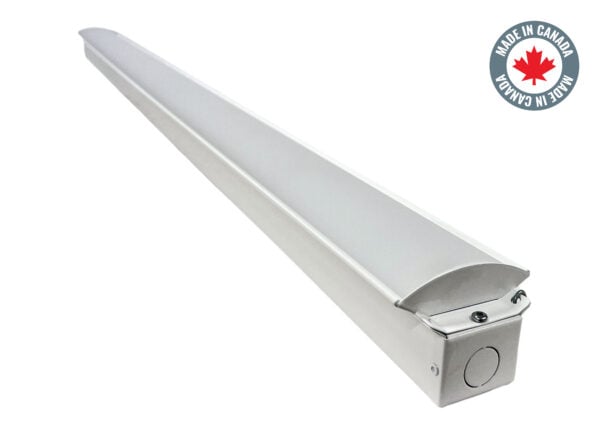

| FS Frosted Smooth | - | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | CP3 3’ Cord Male Plug (Black) |
| - | - | CP5 5’ Cord Male Plug (Black) |
| - | - | SN1 PIR Motion Sensor |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 097L 9,750 Lumens |
| 9C 90 | 40K 4000K | 080L 8,000 Lumens |
| - | 50K 5000K | 060L 6,000 Lumens |
| - | 65K 6500K | 040L 4,000 Lumens |
| - | - | 020L 4,000 Lumens |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired for DIM |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Len | SM Surface or Chain Mountable | Blank None |
| FS Frosted Smooth | - | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | CP3 3’ Cord Male Plug (Black) |
| - | - | CP5 5’ Cord Male Plug (Black) |
| - | - | SN1 PIR Motion Sensor |
