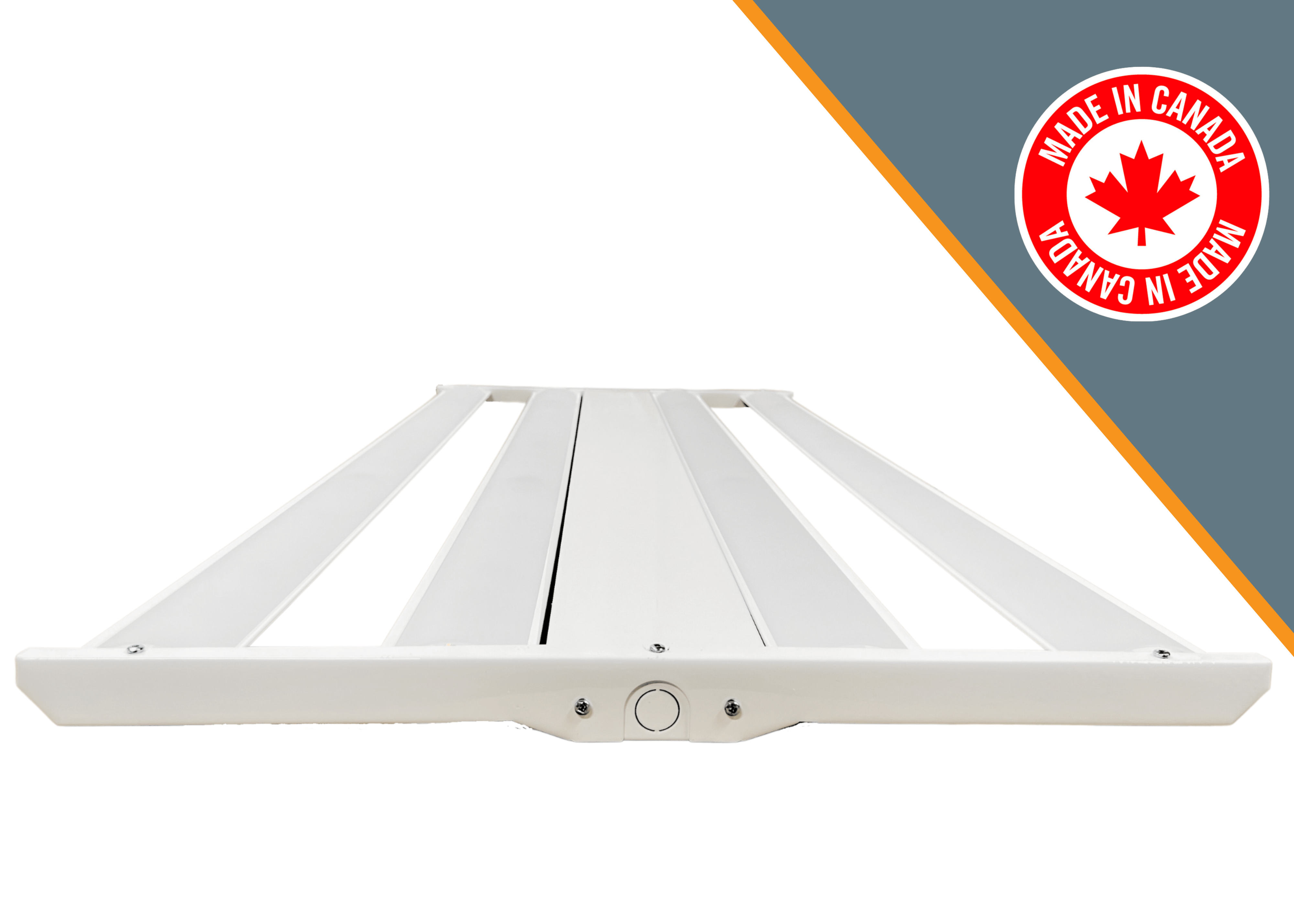

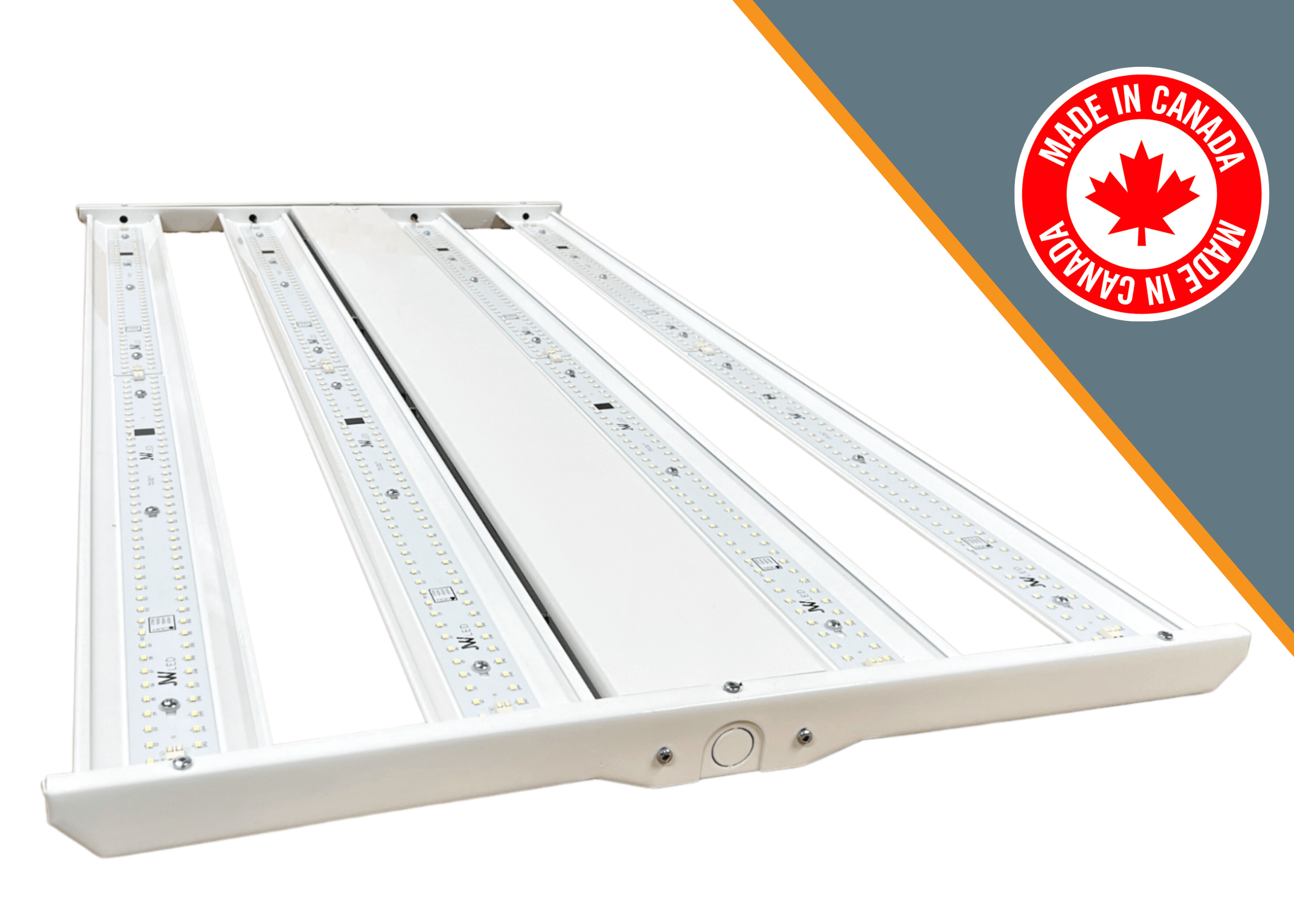

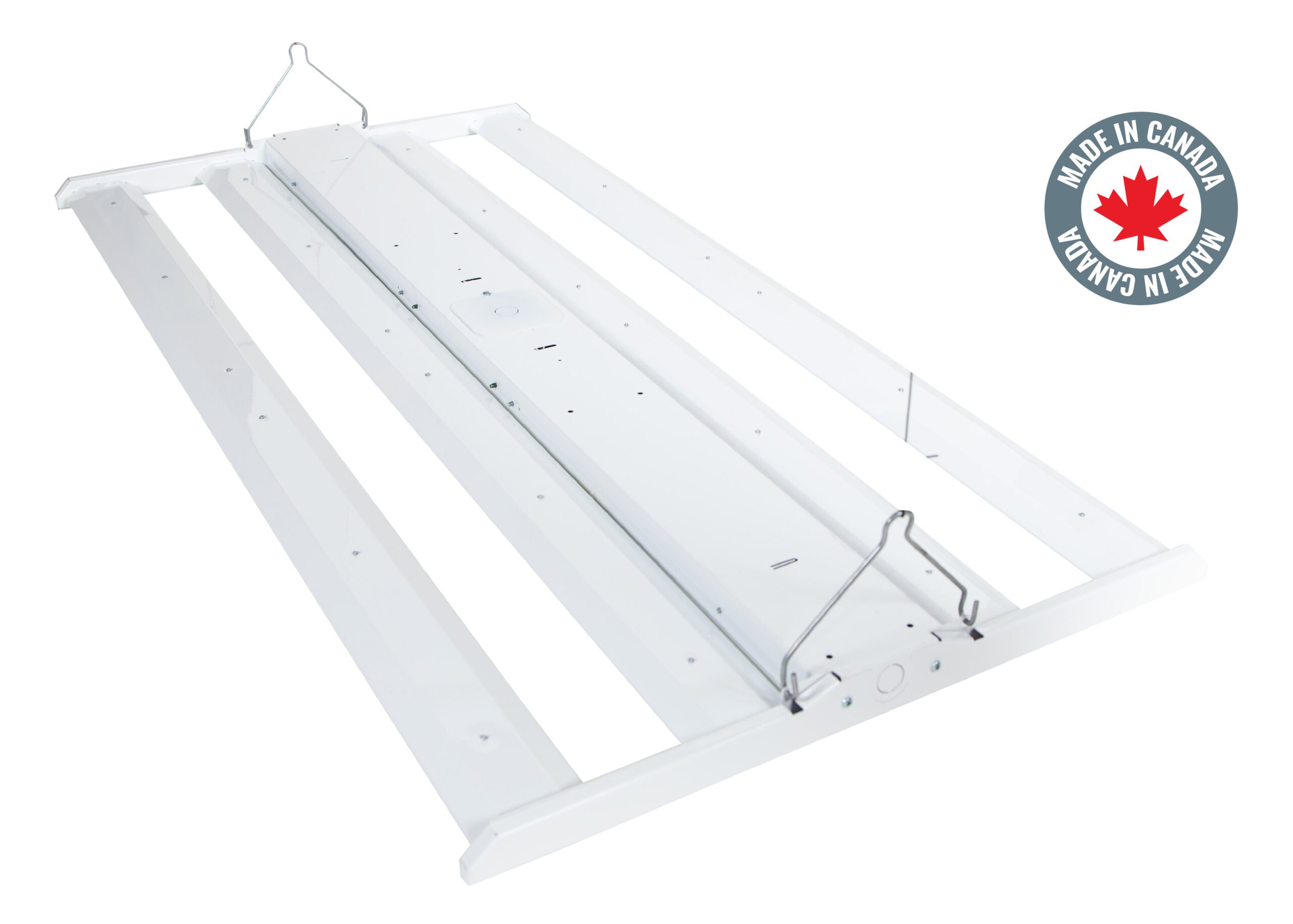

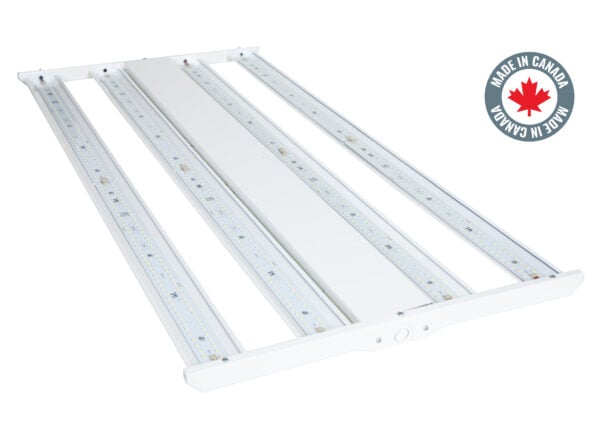

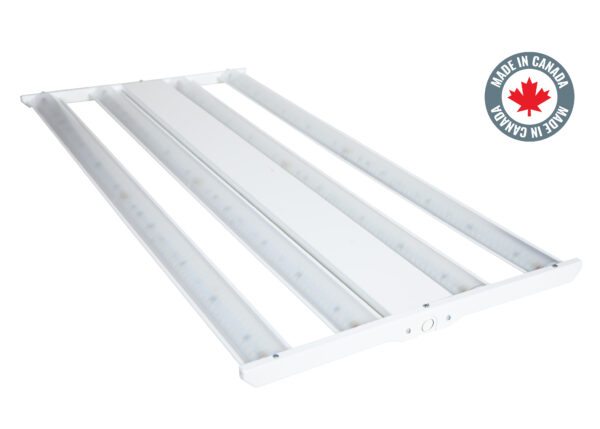

The BA Series 2'x4' fixture delivers precision-engineered illumination across expansive spaces with its wide 120-degree distribution angle, making it the optimal choice for applications demanding broad coverage. Engineered for mid to high ceilings, this versatile LED offers multiple lumen packages and mounting configurations to suit diverse project requirements. Its robust thermal management system ensures unwavering performance in demanding environments, accommodating installation heights from 20 to 50 feet. Handcrafted with pride in Ontario, Canada, it's the reliable lighting solution for your most demanding projects.
This unit excels in industrial, commercial, and agricultural environments including metal fabricating facilities, woodworking shops, storage buildings, warehouses, drive sheds, farm shops, grocery stores, retail spaces, aircraft hangars, hockey rinks, hobby shops, and countless other applications.
Approved for use in Canada and USA, QPS certified.
Includes standard 5-year warranty-view our warranty policy for complete details.
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 610L 61,000 |
| 9C 90 | 40K 4000K | 550L 55,000 |
| - | 50K 5000K | 450L 45,000 |
| - | 65K 6500K | 390L 39,000 |
| - | - | 360L 36,000 |
| - | - | 330L 33,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 610L 61,000 |
| 9C 90 | 40K 4000K | 550L 55,000 |
| - | 50K 5000K | 450L 45,000 |
| - | 65K 6500K | 390L 39,000 |
| - | - | 360L 36,000 |
| - | - | 330L 33,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 610L 61,000 |
| 9C 90 | 40K 4000K | 550L 55,000 |
| - | 50K 5000K | 450L 45,000 |
| - | 65K 6500K | 390L 39,000 |
| - | - | 360L 36,000 |
| - | - | 330L 33,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |
